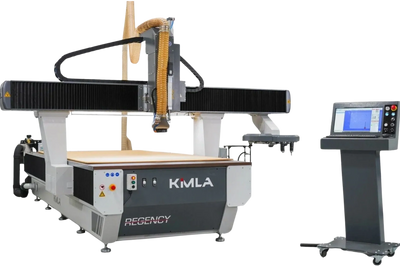

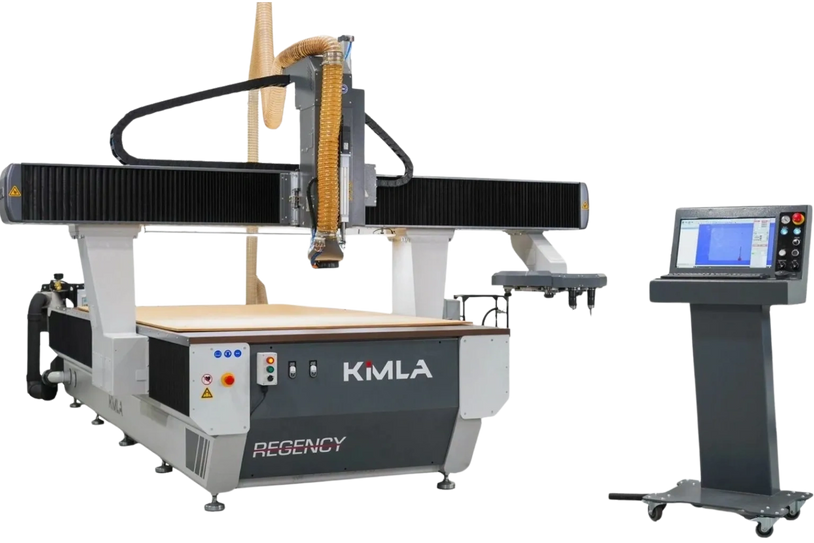

Kimla Regency
Regency Specifications at a Glance
Work Area
Customizable: available in widths up to 102″ and lengths up to 197″
Spindle Options
Options up to 26 HP
Available Drive Systems
Helical Rack and Pinion (Optional MagLev linear drives)
Repeatability
Rack and pinion: 0.001″ / MagLev: 0.00004″
Rapid Traverse
Rack and Pinion 3600 IPM / MagLev 5000 IPM
Vacuum Table
Multi-zone, customizable vacuum bed for versatile material hold-down
Tool Changer
Automatic carousel or linear systems available
Control System
Kimla controller with integrated CAD/CAM software
Kimla Madonna
Madonna Specifications at a Glance
Work Area
Available in widths between 63-82 in and lengths between 122-146″
Spindle Options
3HP (24000 RPM) spindle or 10HP (40000 RPM) spindle
Drive System
Helical rack & pinion on all axes
Repeatability
±0.001″
Rapid Traverse
Up to 3,000 IPM
Vacuum Table
Multi-zone, customizable vacuum bed for versatile material hold-down
Tool Changer
Automatic linear
Control System
Integrated PC-based Kimla controller with proprietary CAM software
Kimla Aluminum Processing
First in the world high-speed large scale milling router on linear motors for aluminum sheets. The system is built on a magnetic backlash-free drive system, which allows for perfect edge quality of the cut and no wear and tear even after many years of operation. The machine has a special soundproof safety enclosure. The Router is also equipped with a special sliding suction foot for extracting aluminum chips. The machining process is absolutely dust and chip-free. which means you don't have to clean the parts after milling which saves lots of time and makes the machine even more efficient.
Kimla Steel Processing
We present our new, large-format CNC gantry milling machine, designed for efficient milling of steel elements. The machine is equipped with a 25 kW spindle with a rotational speed of up to 20,000 RPM, and the body is made of cast iron. The device operates under the control of the KIMLA control system, equipped with CAD/CAM/NEST/CNC modules. The standard table size is 2100x3100 mm, other formats are also available.
Kimla 5-Axis
Model: 5D BFN2141
5-osi BFN2115 - 2 Tables
Kimla Large Table Format
Model: BPF2161
Kimla Small Table Format
Model: BPF1520
