CNC Press Brakes

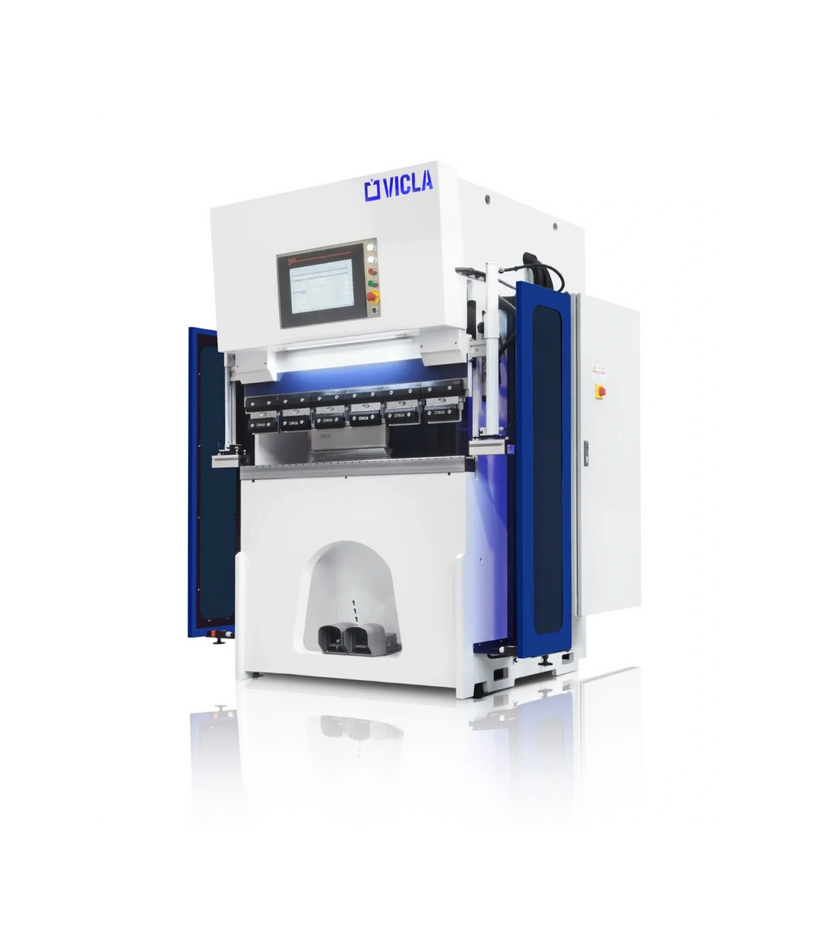

VICLA .FIRST
.FIRST Specifications at a Glance
Tonnage Range
40 ton
Stroke
12″
Throat Depth
20″
Opening Height (Daylight)
20″
Backgauge Range
X =39’’, R = 8’’ (expandable up to 6 axes: Z1, Z2, X2, X3)
Speed
Axis positioning up to 1,325 IPM
CNC Control
ESA touchscreen (16″, 19″, or 21″) with full 3D simulation
Drive System
Hybrid (up to 55% energy savings vs. conventional)
VICLA .SMART
Performance Meets Flexibility
.SMART Specifications at a Glance
Tonnage Range
92 to 800 tons
Stroke
12″
Throat Depth
20″
Opening Height (Daylight)
20″
Backgauge Range
X =39’’, R = 8’’ (expandable up to 6 axes: Z1, Z2, X2, X3)
Speed
Axis positioning up to 1,325 IPM
CNC Control
ESA touchscreen (16″, 19″, or 21″) with full 3D simulation
Drive System
Hybrid (up to 55% energy savings vs. conventional)
Safety
LazerSafe dual-beam system + full Industry 4.0 integration
VICLA .SUPERIOR
Ultimate Power, Unmatched Precision.
.SUPERIOR Specifications at a Glance
Tonnage Range
92 to 800 tons
Stroke
12″
Throat Depth
20″
Opening Height (Daylight)
20″
Backgauge Range
X =39’’, R = 8’’ (expandable up to 6 axes: Z1, Z2, X2, X3)
Speed
Axis positioning up to 1,325 IPM
CNC Control
ESA touchscreen (16″, 19″, or 21″) with full 3D simulation
Drive System
Hybrid (up to 55% energy savings vs. conventional)
Safety
LazerSafe dual-beam system + full Industry 4.0 integration
