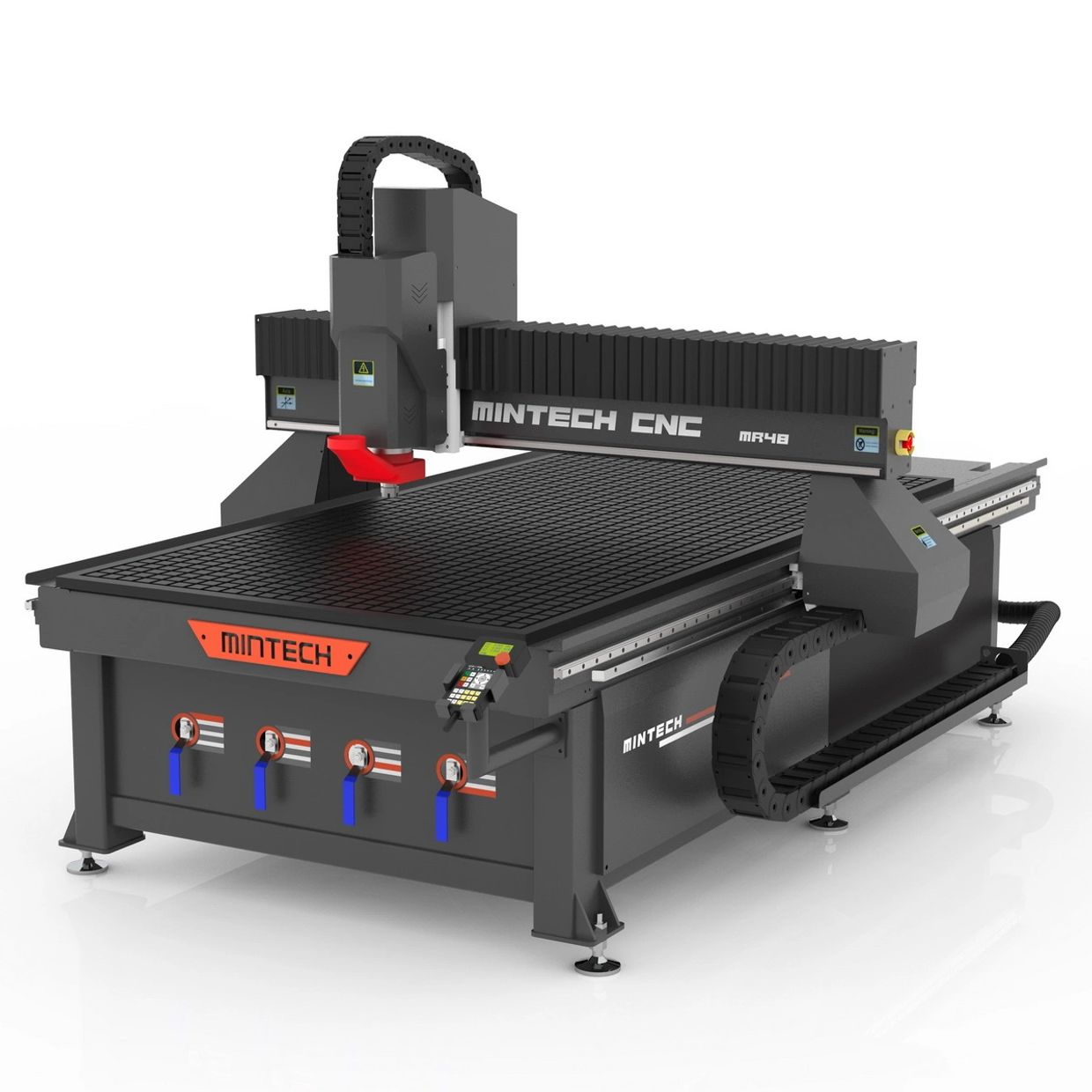

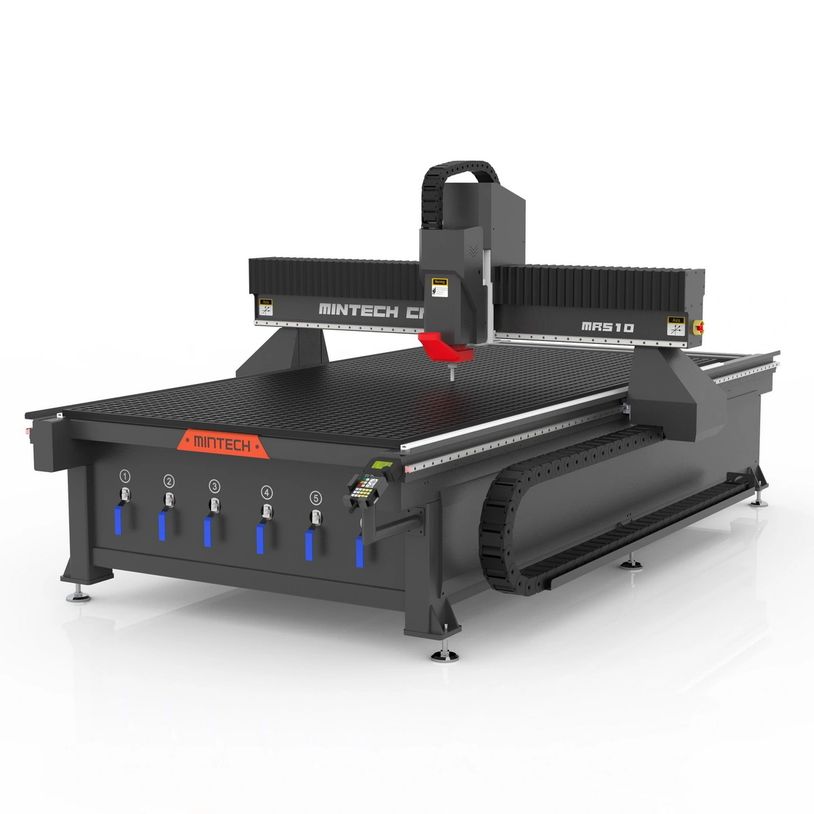

MR Series

---

The MR Series CNC Router delivers professional CNC capabilities in an accessible, user-friendly package.

POWER SUPPLY
220V Single Phase

CONTROL SYSTEM
XDW

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Water Cooling

SPINDLE POWER
4000 Watt

SPINDLE RPM
30000 RPM

 Work Area and Capacity

• Z-Axis Travel: 7 inches (180 mm).
• Material Thickness: Up to 5 inches (130 mm).
• Cutting Thickness: Up to 4 inches (100 mm) with appropriate tooling.
• Worktable Surface: Phenolic composite grid vacuum table with aluminum T-slots.

Control System

• File Format Support: DXF, AI, CDR, NC, and G-code for both 2D and 3D machining.
• Interface: Handheld controller.
• CAM Software Compatibility: Compatible with industry-standard software such as VCarve, Aspire, Alphacam, Engview, MasterCAM, Enroute, Type 3 and others.

Motion and Drive

• Movement Type: Gantry movement.
• Drive System: Servo-driven motors.
• Transmission:
  • XY-Axis: Helical rack-and-pinion with linear guides.
  • Z-Axis: Ball screw with linear guides.
• Speed: Max travel speed of 82 ft/min ( 25 m/min ).
• Precision: ±0.004 inches ( ±0.1 mm ).
• Repeatability: ±0.002 inches ( ±0.05 mm ).

Spindle

• Power: 5.3 HP ( 4 kW ).
• Speed: Up to 30,000 RPM ( water-cooled ).
• Tool Holder: ER20 collet system.
• Tool Change: Manual.

Cooling method

• Water Cooling

Power and Utility Requirements

• Main Power: 208-240V, single-phase, 30A.
• Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min).
• Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10-40°C.
• Humidity: 40-60%.

Available Configurations

• Optional high-resolution CCD camera for precise positioning and material alignment.

Advantages

• Beginner-Friendly: Designed for ease of operation with minimal learning curve.
• Cost-Effective: Low maintenance costs with manual tool changes.
• High Flexibility: Supports various power options and materials.
• Precision and Efficiency: Delivers accurate, reliable performance for a wide range of applications.
