Heavy Duty - SR Series

---

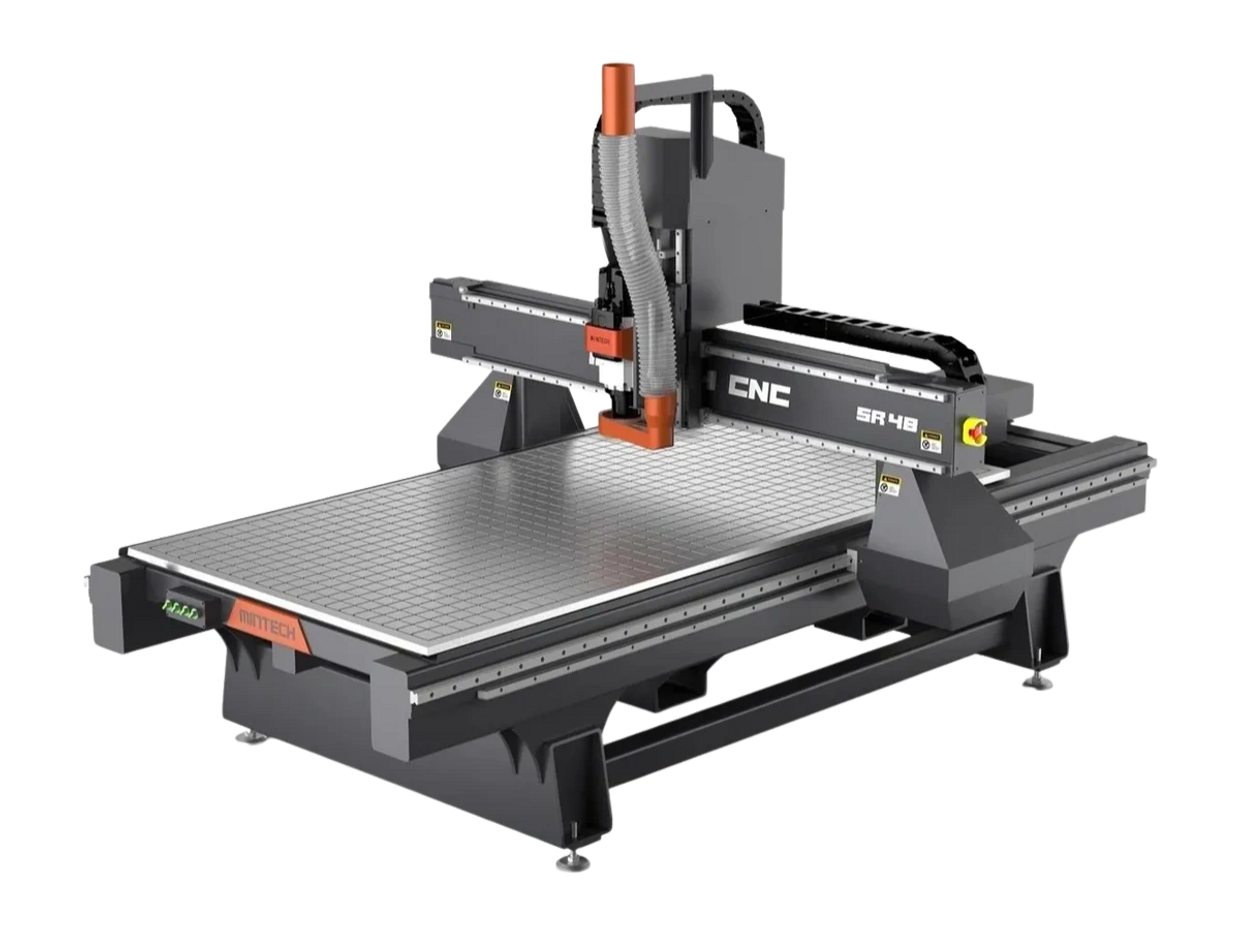

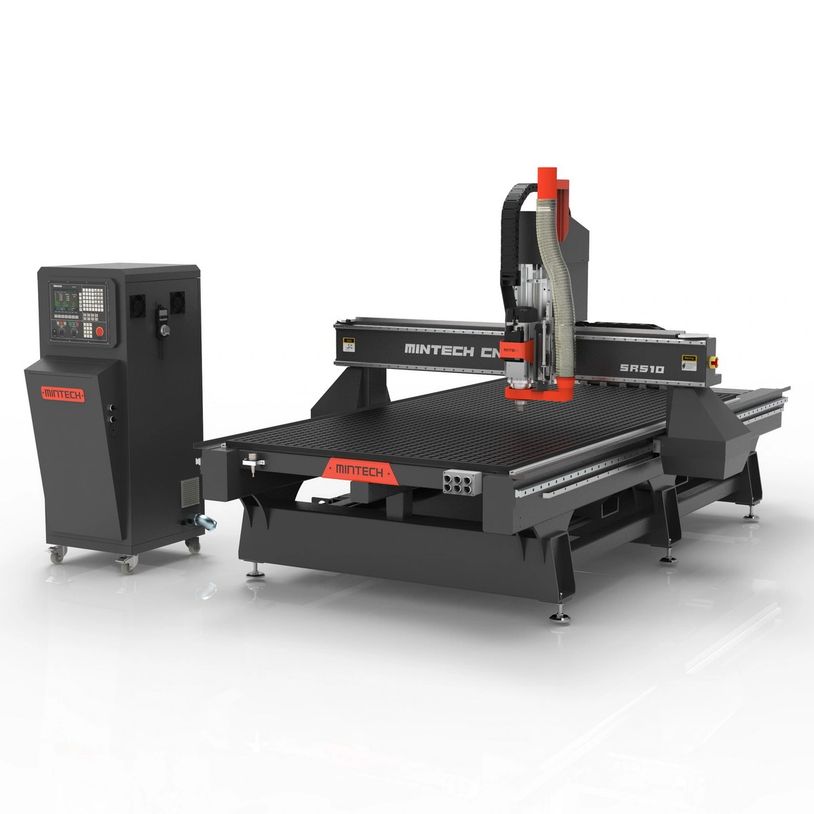

Heavy-duty CNC router. The SR Series CNC Router, short for "Super Router", is a heavy-duty CNC machine engineered for machining extra-large, extra-thick, and extra-heavy materials.

POWER SUPPLY
220V Three Phase

CONTROL SYSTEM
Weihong / Syntec / Siemens

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Air Cooling

SPINDLE POWER
9000 Watt (12 HP)

SPINDLE RPM
24000 RPM

Control System

• Industrial-grade CNC system supporting file formats like DXF, AI, CDR, NC, G-code for 2D and 3D machining.
• Compatible with industrial controllers such as Weihong, Syntec, and Siemens.

CAM Software Compatibility

• Compatible with industry-standard software like VCarve, Aspire, Alphacam, Engview, MasterCAM, Enroute, Type 3 and others.

Drive System

• Motion Type: Gantry movement.
• Drive Type: Servo-driven motors.
• Transmission:
  • XY-Axis: Precision helical rack-and-pinion with linear guides.
  • Z-Axis: Ball screw with linear guides.
• Speed:
  • Max travel speed: 131 ft/min ( 40 m/min ).
• Precision:
  • Positioning accuracy: ±0.004 inches ( ±0.05 mm/300 mm ).
  • Repeatability: ±0.002 inches ( ±0.05 mm ).

Spindle

• Power: 12 HP (9 kW).
• Speed: 24,000 RPM (air-cooled).
• Options: Hiteco or HSD spindles.
• Tool Holder: ISO 30 with ER32 collets.

Tool Changing System

• 5-position linear tool rack (standard).
• 8-position rotary tool changer (optional).
• Fully customizable options available.

Power and Utility Requirements

• Main Power: 208-240V, 3-phase, 60 Hz, 30A.
• Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min).
• Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).

Cooling method

• Air Cooling

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10-40°C.
• Humidity: 40-60%.

Available Configurations

• Optional high-resolution CCD camera for precise positioning and material alignment.
• Optional automatic tapping system.
• Optional 4-axis / 5-axis multi-axis system

Advantages

• Heavy-Duty Performance:
  Designed for large-scale machining of oversized and heavy materials.
• Exceptional Precision:
  High-accuracy transmission systems ensure flawless machining of complex geometries.
• Customization Flexibility:
  Tailored to meet specific industrial requirements, with options for larger sizes and additional functions.
• Versatile Applications:
  Supports a wide range of industries and materials, from aerospace components to exhibition panels.
• Durability:
  Built to endure high loads and long-term operation, ensuring reliable performance.100% Free Dedicated Remote Technical Support for Life of the Machine
