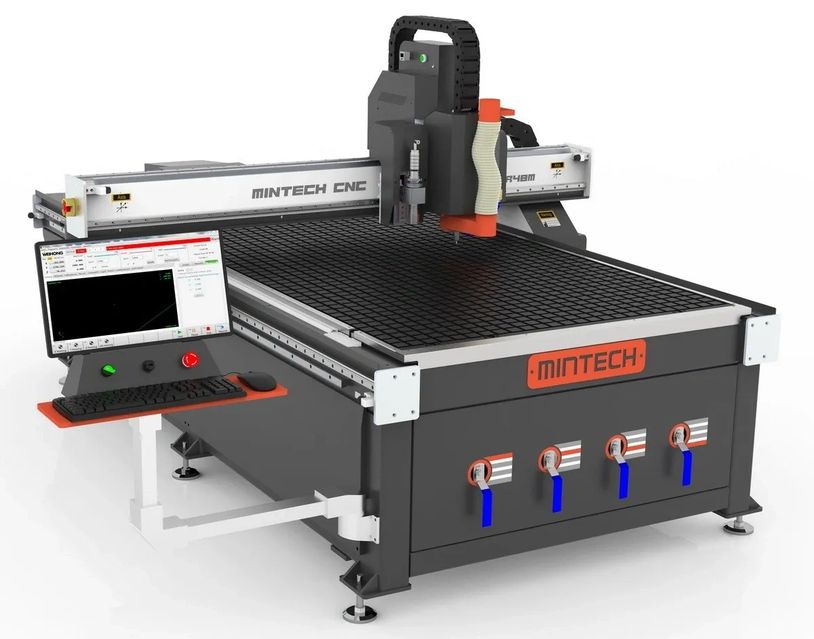

TR-M Series

---

 High-precision TR-M Series CNC Router for UV printing, signage, packaging, textiles, and industrial fabrication. Multi-function CNC cutting machine, all-in-one CNC cutter, precision CNC machining across metals, plastics, rubber, and composite materials. Available across the USA including California.

POWER SUPPLY
220V Single Phase

CONTROL SYSTEM
MDRCNCRouter VC204-C

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Water Cooling

SPINDLE POWER
4000 Watt

SPINDLE RPM
40000 RPM

 Work Area and Capacity

• Z-Axis Travel: 4 inches (110 mm).
• Material Thickness: Up to 3.5 inches (90 mm).
• Maximum Cutting Thickness: Up to 1 3/4 inches (45 mm) with appropriate tooling.

Machine Structure

Frame: Square steel pipe welded structure, stress-relieved through high-temperature aging.

Working Table

Phenolic composite grid vacuum table with aluminum T-slots.

Control System

• CNC System: MDRCNCRouter VC204-C.
• File Support: DXF, AI, CDR, NC, G-code, with automatic G-code generation.
• Interface: Integrated industrial control computer with handheld controller.
• Communication Protocols: MODBUS/TCP, OPC UA, MT CONNECT.

CAM Software Compatibility

• Compatible with industry-standard software such as VCarve, Aspire, AlphaCam, Engview, MasterCAM, Enroute, Type 3 and others

Motion and Drive

• Movement Type: Gantry movement.
• Drive System: Servo-driven motors.
• Transmission:
  • XY-Axis: Helical rack-and-pinion with linear guides.
  • Z-Axis: Ball screw with linear guides.
• Speed: Max travel speed of 197 ft/min ( 60 m/min ).
• Precision: ±0.004 inches ( ±0.1 mm ).
• Repeatability: ±0.002 inches ( ±0.05 mm ).

Spindle

• Power: 5.3 HP ( 4 kW ).
• Speed: Up to 40,000 RPM ( Water-cooled ).
• Tool Holder: ISO 20, ER20 collet.
• Cutting Tool: Milling Cutter Spindle.

Cooling method

• Water Cooling

Cutting Heads ( Optional Modules )

• Electric Vibrating Knife: For cutting flexible materials.
• Active Wheel Knife: For contour cutting.
• Pointed Knife: For fine details.
• Oblique Knife (V Cut): For V-shaped cuts.
• Spring Knife (Kiss Cut): For light, shallow cuts.
• Creasing Knife: For scoring and folding lines.
• Pneumatic Vibrating Knife: For precise cutting of dense materials.

Power and Utility Requirements

• Main Power: 208-240V, single-phase, 60 Hz, 30A.
• Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min).
• Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10-40°C.
• Humidity: 40-60%.

Available Configurations

• Optional high-resolution CCD camera for precise positioning and material alignment.

Advantages

• Exceptional Performance: High-speed spindle and cutting precision meet rigorous quality standards.
• Versatility: Handles a wide variety of materials with multiple cutting tools and modules.
• Automation: CCD recognition system ensures accurate alignment and consistent results.
• Ease of Use: Intuitive control system simplifies even complex tasks.
