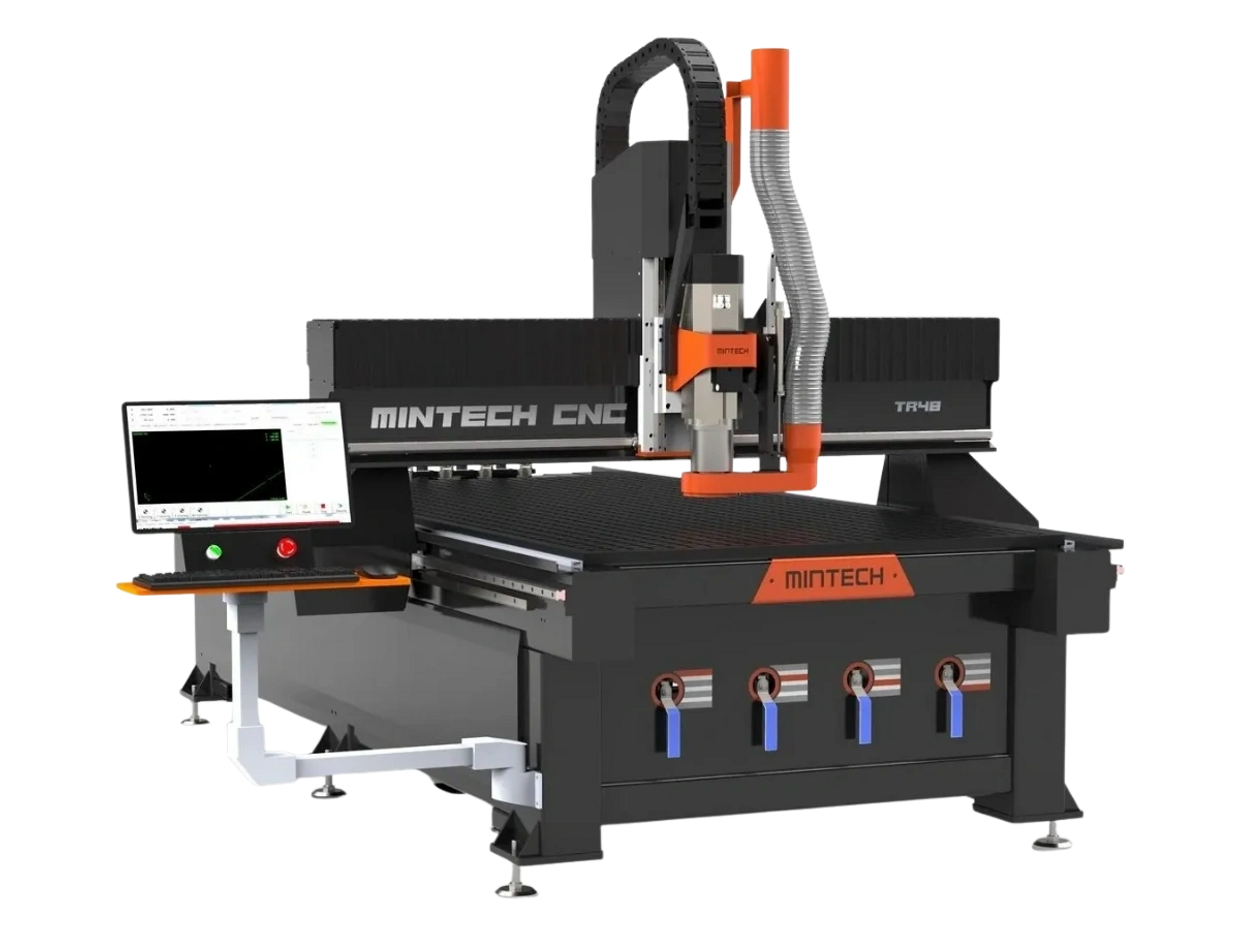

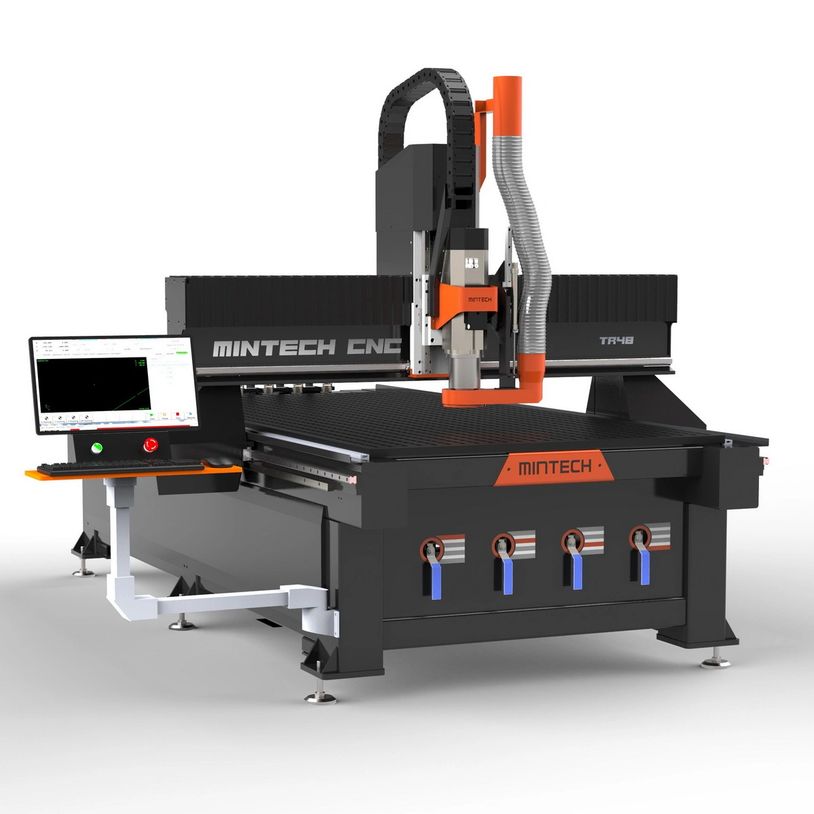

TR Series

---

Cost-effective CNC router with powerful spindle and automatic tool-changing system, Offering exceptional performance and value for small and medium-sized enterprises.

POWER SUPPLY
220V Three Phase

CONTROL SYSTEM
XDW

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Air Cooling

SPINDLE POWER
9000 Watt

SPINDLE RPM
24000 RPM

 Work Area and Capacity

• Z-Axis Travel: 11 inches (280 mm).
• Material Thickness: Up to 5 inches (130 mm).
• Cutting Thickness: Up to 4 inches (100 mm) with appropriate tooling.
• Worktable Surface: Phenolic composite grid vacuum table with aluminum T-slots.

Control System

• File Format Support: DXF, AI, CDR, NC, G-code with automatic G-code generation.
• Interface: Integrated industrial control computer with a handheld motion controller.
• Communication Protocols: MODBUS/TCP, OPC UA, MT CONNECT.

CAM Software Compatibility

• Compatible with industry-standard software like VCarve, Aspire, AlphaCam, Engview, MasterCAM, Enroute, Type 3 and others.

Movement Type: Gantry movement.

Drive System: Servo-driven motors.

Transmission:

• XY-Axis: Helical rack-and-pinion with linear guides.
• Z-Axis: Ball screw with linear guides.

Speed: Max travel speed of 131 ft/min (40 m/min).

Precision: ±0.004 inches (±0.05 mm/300 mm).

Repeatability: ±0.002 inches (±0.05 mm).

Spindle

• Power: 12 HP (9 kW).
• Speed: Up to 24,000 RPM (air-cooled). Options include Hiteco or HSD spindles.
• Tool Holder: ISO 30.
• Tool Change:
  • 5-position linear tool rack.
  • 6-position linear tool rack.
  • 12-position linear tool rack.

Power and Utility Requirements

• Main Power: 208-240V, 3-phase, 60 Hz, 30A.
• Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min).
• Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10-40°C
• Humidity: 40-60%

Optional Upgrades

• CCD Camera: Automatically scans marks/QR codes to locate files & paths.
• Optional Knife System Upgrade
  • Oscillating Knife: Cuts foam, rubber, textiles.
  • Drag Knife: Precision cutting for vinyl, cardboard, thin materials.
  • Tangential Knife: Accurate cutting for leather, thick materials.
• CNC System: Syntec / Siemens

Advantages

• Powerful Spindle:
  Suitable for intensive processing of hard materials.
• Automatic Tool Changing:
  Enhances productivity with efficient multi-process switching.
• Versatile Compatibility:
  Support a wide range of materials and industries.
• Cost-Effective Performance:
  Delivers high-end capabilities at an affordable price.
