VR Series

---

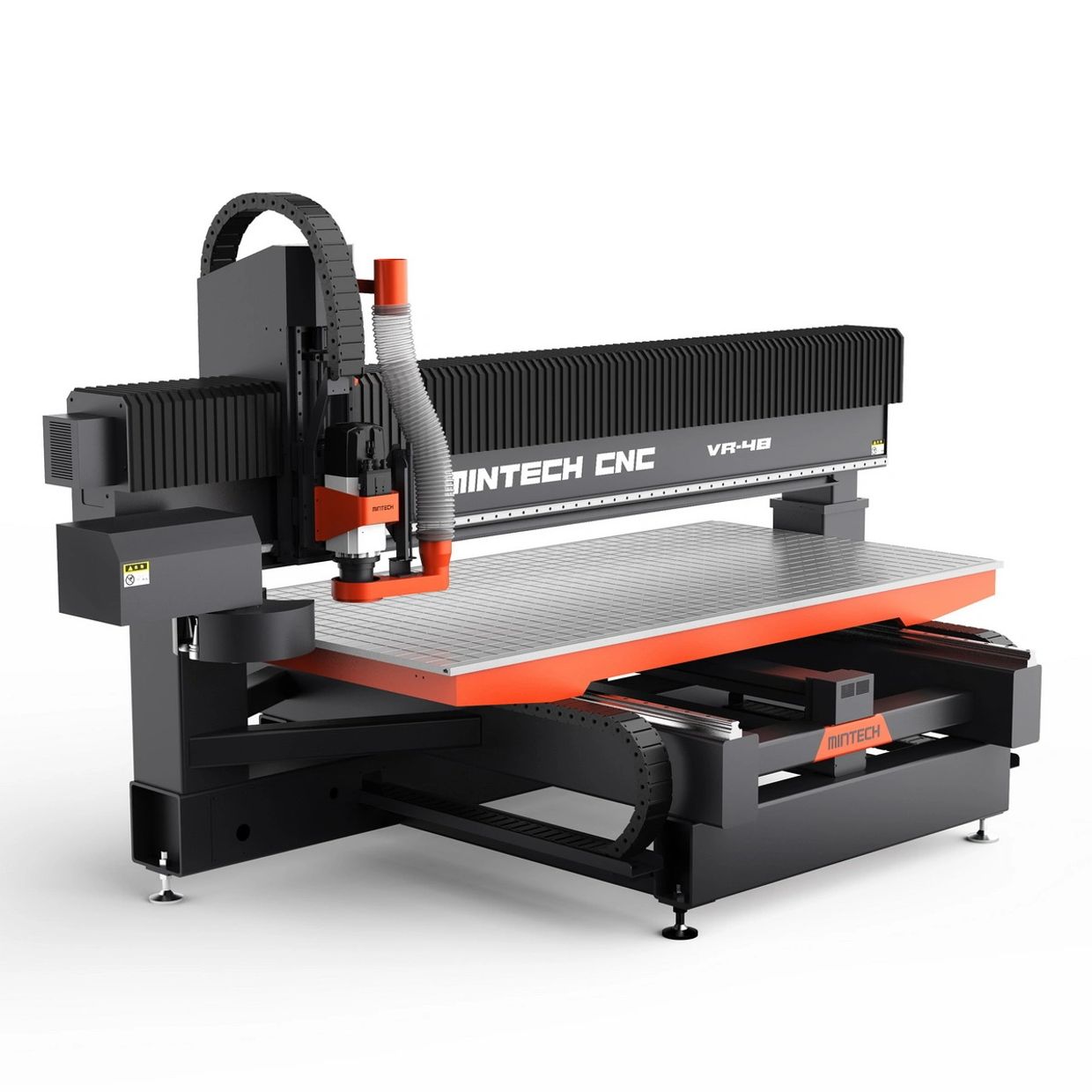

High-precision CNC router with ball screw transmission and moving table design. The VR Series CNC Router is a high-performance machine specifically designed for precision machining.

POWER SUPPLY
220V Three Phase

CONTROL SYSTEM
Weihong / Syntec / Siemens

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Water Cooling / Air Cooling

SPINDLE POWER
4kW / 9kW

SPINDLE RPM
40000 RPM / 24000 RPM

 Control System

• CNC System: Supports DXF, AI, CDR, NC, G-code formats for 2D and 3D machining.
• Compatible Systems: Weihong, Syntec, Siemens industrial-grade CNC systems.
• Interface: LCD with industrial control HMI and handheld controller.

CAM Software Compatibility

• Compatible with industry-standard software like VCarve, Aspire, Alphacam, Engview, MasterCAM, Enroute, Type 3 and others

Drive System

• Motion Type: Moving table design.
• Drive Type: Servo-driven motors.
• Transmission:
  • Ball screw with linear guides on XYZ axes.
• Speed:
  • Max travel speed: 92 ft/min (28 m/min).
• Precision:
  • Positioning accuracy: ±0.004 inches (±0.05 mm).
  • Repeatability: ±0.002 inches (±0.05 mm).

Spindle

• Power: 12 HP (9 kW).
• Speed: 24,000 RPM (air-cooled).
• Options: Hiteco or HSD spindles.
• Tool Holder: ISO 30 with ER32 collets.

Power Requirements

• Main Power:
  • VR22: 208 - 240V, 3-phase, 60 Hz, 30A.
  • VR44 / VR48: 208 - 240V, 3-phase, 60 Hz, 63A.
• Compressed Air: 0.6 - 0.8 MPa (87 - 116 psi), ≥ 3 - 5 CFM ( 85 - 140 L/min ).
• Vacuum Requirements: 117.7 - 176.6 CFM ( 200 - 300 m³/h ), vacuum pressure ≥ 85 mbar ( 8500 Pa ).

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10 - 40°C.
• Humidity: 40 - 60%.

Available Configurations

• Optional high-resolution CCD camera for precise positioning and material alignment.
• Optional automatic tapping system.
• Optional 4-axis / 5-axis multi-axis system

Advantages

• Unmatched Precision: Ball screw transmission ensures accuracy for even the most demanding applications.
• Efficient Operation: Moving table design simplifies material handling and boosts productivity.
• Advanced Tooling: High-speed rotary tool changer supports complex multi-step machining with minimal downtime.
• Robust Construction: Durable frame ensures long-term reliability and consistent performance.
• Versatility: Handles a wide range of materials and applications, from industrial parts to decorative elements.
