Designed to produce extremely smooth edge finish on a wide range of materials including, but not limited to: UHMW, HDPE, HDU, PVC, Phenolic, Solid Surface, ACM, Wood, colored Acrylic, and clear Acrylic where a smooth edge is the priority over clarity.

The Omega series is a highly polished single fluted tool with up or down geometry specifically designed for premium edge quality in acrylic but may be used to cut wood and other plastics. **For best results in acrylic utilize an edge finish pass of .03-.06**

Monocrystalline diamond (MCD) polishing router bits for high gloss polishing of acrylic edges on a CNC router.

**NOTE**

Prior to polishing with this tool, your part must be fully cut with a milling tool like our OMEGA series first.

Highly polished tool designed specifically for achieving the best possible edge finish on aluminum while maintaining a high feed rate. The 2 fluted viper was designed specifically for 50-51 & 60-62 or harder aluminum while the single fluted version excels in 3003 or when cutting thin sheets as to reduce part lift. For best results, use with Liquid-X™ Misting Fluid
For best results use edge finish pass of .01″ on aluminum.

The “Black Series” tools are DLC coated (diamond-like coating) to provide low friction dry cutting of aluminum. Viper Black DLC coated tools are corrosion resistant and have self-lubricating properties which also allow them to be a longer lasting alternative to the standard Viper series tools.

Designed to produce the fastest feedrates possible while maintaining superior cut quality on steel composite material (SCM).  Specialized coating extends tool life and allows for maximum chip removal.

The combination of down cut on the top half of the tool and up cut on the bottom half of compression tooling keeps material surface from chipping on either side. Perfect for Melamine board, Plywood, Particle board, and many other materials where top and bottom of material is prone to chipping.

Our Chamfer Series line of tooling offers a unique design of 3 down fluted spiral cut edges fit to an overall 90° to achieve phenomenal cut quality on aluminum. Works on certain plastics, and wood materials as well.

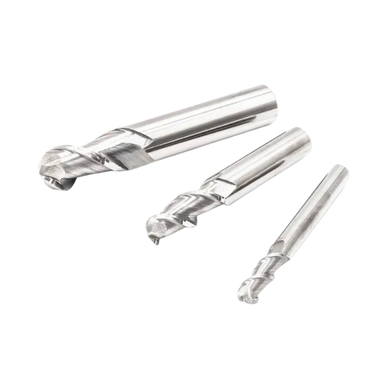

The Ball Mill Series takes the standard ball nose platform to the next level with an extra finishing step and a special flute design optimized for aluminum machining. Also works well on plastics, and multiple wood materials.

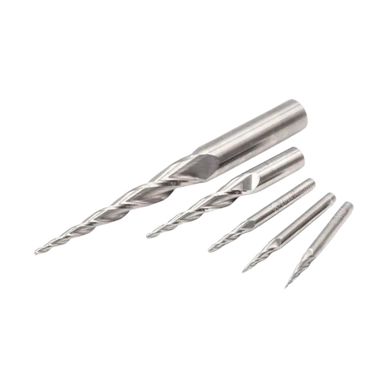

These tapered ball nose tools were designed to offer smooth 3D carving while maintaining high strength and deflection resistance inherent to the tapered geometry. Allows for the elimination of roughing or multiple passes, reducing overall carving time. 3D Signmakers “Must Have”

Created for the purpose of long life and making perfect drill holes on a CNC router,
these solid carbide drill bits don’t exhibit the short life, deflection, and low quality
holes normally associated with standard high speed steel “off the shelf ” drill bits.
Most CNC router tooling is not designed for plunging straight downward into the
material; doing so will exert high load force onto the face of the spindle bearings
causing pre-mature failure. Using proper tools like a drill bit designed for plunging
will save your spindle from unnecessary wear & tear.

These V-Groove tools are perfect for your sign making and engraving needs. Pointed tip with no flat spot allows for sharp engraved letters and designs. Great for a wide variety of materials including woods and plastics.

The Insert V-Carve Series tools were designed with the sign carver in mind. Solid body tools with replaceable insert blades so after initial purchase, only the insert blades need to be replaced.

Engraving tools with various flat for engraving letters and other detailed work in aluminum, plastics, and wood)

Our ACM Series tools make folding aluminum composite materials easy. Choose from 90 degree tools to create 90 degree folds or our 135 degree tools for 45 degree folds. ** For straight cutting of ACM see Viper, or Razor Series**

Out table mill tool is designed to be used on MDF to provide a flat, smooth surface which will allow the greatest air flow from vacuum pump possible. Can also be used on any type of wood.

Custom tools
