Caelus 6 Sided Drilling

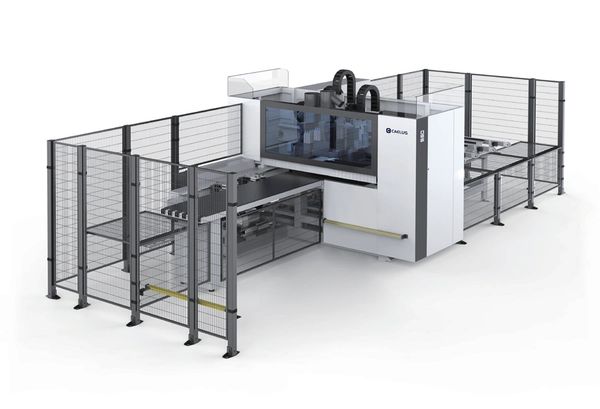

D5S CNC 6-Sided Drilling Center
- Equipped with twin drilling heads for simultaneous processing, delivering higher efficiency.
- Easy to operate and reduces labor intensity.
- Compatible with various software.
- Ideal for six-sided drilling of various panels (hinge holes, through holes, blind holes).
- Supports horizontal drilling, symmetrical hole processing, as well as grooving and milling with small spindles.
D5A CNC Automated 6-Sided Drilling Center
A core model of automated single-channel 6-sided drilling machine with dual drilling heads for collaborative processing. Integrates drilling, grooving, milling and invisible part processing, supports fully automatic line connection and standalone operation. Easy to operate, space-saving and high-precision, suitable for large-scale processing and automatic line upgrading of small and medium-sized furniture factories.

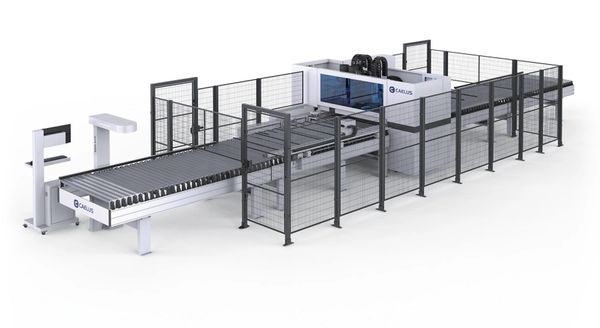

D6A CNC Dual Channel 6-Sided Drilling Center
A high-end automated dual-channel 6-sided drilling line with 6 coordinated drilling heads. It supports simultaneous processing of multiple panels and various processes, realizes fully automatic loading/unloading and continuous production, and is suitable for large-scale, high-efficiency processing needs of furniture factories with both precision and productivity guaranteed.
D5S CNC 6-Sided Drilling Center
Additional Information
CAELUS D5S CNC 6-Sided Drilling Center is a machining center for panel furniture. It processes the top, bottom and four edges in one setup, supporting hinge, through, blind, horizontal and symmetrical holes. Optional grooving and milling extend its capability. Twin drilling heads, air-flotation support, dual grippers and automatic side pushing help reduce handling and operator workload. Suitable for custom furniture, cabinets, wardrobes and office furniture, the D5S supports varied hole patterns with consistent positioning.
- Equipped with twin drilling heads for simultaneous processing, delivering higher efficiency.
- Easy to operate and reduces labor intensity.
- Compatible with various software.
- Ideal for six-sided drilling of various panels (hinge holes, through holes, blind holes).
- Supports horizontal drilling, symmetrical hole processing, as well as grooving and milling with small spindles.
Key Advantages:
1. Heavy-Duty Machine Body: Robotic welding, annealing, shot blasting and precision machining support stable long-term operation.
2. Multi-Position Drill Layout: The drilling system includes upper and lower drilling blocks for different vertical and horizontal hole requirements.
3. Visual Processing Simulation: Displays the machining path and supports processing time prediction before production.
4. Real-Time Production Records: Monitors processing records and production progress during operation.
5. Dust Collection Conveyor: Removes dust inside the machine while supporting cleaner panel transfer.
D5S CNC 6-Sided Drilling Center Standard Functions:
1. Heavy Machine Body Structure
The structure with robotic welding, annealing, shot blasting, sandblasting, precision machining and other processes, effectively ensuring the long-term stable operation of the equipment.
2. 2 Top Drilling Blocks

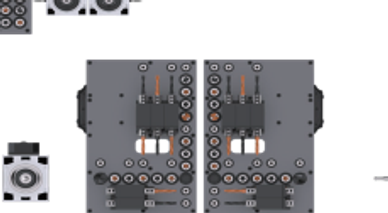

This drilling head includes 2 top drilling blocks (26V+18H) and 1 bottom drilling block (9V). Max drill diameter 35mm, speed 4500rpm (2700rpm at 35mm with FC). Shank 10mm, tool length 70mm, max processing depth 45mm.
3. Double Transitional Air Flotation Worktable
Double transitional air flotation worktable enables flexible movement, stable panel support, enhanced drilling accuracy and dust prevention.
4. Upgraded Dual Gripper
Upgrade dual gripper and long guide rail, Quick working with various panel holes.
5. Quick Positioning And Clamping
Quick positioning and clamping with automatic side pushing.
6. Belt Conveyor With Dust Collection
Belt conveyor with dust collection to remove dust inside the machine.
7. Simulate Processing Path
Simulate processing path for visualization and accurate time prediction.
8. Processing Record Statistics
Processing record statistics for real-time production progress monitoring.
9. Manual Barcode Scanner
Manual barcode scanner for workpiece production requirement identification.
10. 5-Position Automatic Tool Changer
5-position automatic tool change magazine for automatic tool changing, supporting grooving, milling, lamello and other connector processing.
Optional Features:
Optional Features:
1. Grooving Function (Optional):
Grooving Function (Optional): With grooving saw blade; X-range 55–880mm; saw φ120mm×6mm, max depth 20mm; left/right saws on both sides of drilling head.
Optional Features:
Optional Features:
2. Two-Side Aggregate (Custom Optional):
Two-Side Aggregate (Custom Optional): Supports grooving saw, lamello, Lecco cutter for side processing; max tool length ≤ 50mm.
D5A CNC Automated 6-Sided Drilling Center
Additional Information
CAELUS D5A is an automated CNC center for panel-furniture components, designed for digitally assigned multi-surface drilling and routing. Its flexible standalone or line-connected operation helps cabinet, wardrobe and office-furniture producers manage changing orders with less manual work. By reducing panel re-referencing, wrong-program risks, labor-intensive handling and assembly mismatches, D5A CNC Automated 6-Sided Drilling Center supports repeatable hardware positioning and a steadier production flow for growing factories.
A core model of automated single-channel 6-sided drilling machine with dual drilling heads for collaborative processing. Integrates drilling, grooving, milling and invisible part processing, supports fully automatic line connection and standalone operation. Easy to operate, space-saving and high-precision, suitable for large-scale processing and automatic line upgrading of small and medium-sized furniture factories.
Key Advantages:
1. Shorter Order Lead Times: Reduce transfers between separate drilling steps, helping custom furniture factories move mixed orders to assembly with fewer production delays.
2. More Consistent Assembly Results: Help keep hardware holes aligned across repeat panels, reducing fitting adjustments and rework caused by inconsistent positioning.
3. High-Mix Production Flexibility: Handle changing panel dimensions and hole patterns without relying on fixed manual templates, supporting batch-one and small-batch orders.
4. Lower Operator Workload: Reduce repetitive lifting, turning and rechecking so operators can focus more on job verification and production coordination.
5. A Practical Automation Upgrade: Improve the drilling stage as a standalone investment while leaving room to connect with cutting, edge banding and material-handling systems as demand grows.
D5A CNC Automated 6-Sided Drilling Center Standard Functions
1. Intelligent Scanning & Error Handling:
600mm long-range barcode scanning; auto-return for misreads; auto-reject & alarm for abnormal panels to ensure uninterrupted production.
2. High-Efficiency Dual Drilling System:
2+1 drilling heads, 53 tools, φ35mm max drill; 6-sided & horizontal drilling, PTP-level efficiency.
3. High-Speed Precision Clamping:
Upgraded double gripper with long guide rail; speed up to 140m/min, stroke 5.5m; auto hole recognition & one‑time panel handling to shorten cycle time.
4. Front-In & Back-Out Continuous Flow:
Front loading, rear unloading; seamless processing with minimal standby; directly connectable to automatic production lines.
5. Visual Intelligent Control:
Visual operation; supports CAD/CAM, DXF/MPR/XML; path simulation, real-time production stats & accurate time prediction.
6. High-Precision Stable Processing:
Air flotation table; auto clamping; positioning tolerance ≤ 0.3mm.
7. Flexible & Easy Line Integration:
Quick-connect, stable conveying; min. panel 200mm×50mm.
8. Clean & Eco-Friendly Design:
Bottom dust collection, 30m/s air speed; efficient dust removal.
Optional Features:
Optional Features:
1. Grooving Function (Optional):
Grooving Function (Optional): With grooving saw blade; X-range 55–880mm; saw φ120mm×6mm, max depth 20mm; left/right saws on both sides of drilling head.
Optional Features:
Optional Features:
Optional Features:
2. Two-Side Aggregate (Custom Optional):
Two-Side Aggregate (Custom Optional): Supports grooving saw, lamello, Lecco cutter for side processing; max tool length ≤ 50mm.
D6A CNC Dual Channel 6-Sided Drilling Center
Additional Information
CAELUS D6A CNC Dual Channel 6-Sided Drilling Center is an automated panel-furniture line that drills, grooves and mills all six faces of cabinet panels in one workflow. Six coordinated drilling heads and dual channels help factories reduce manual turning, positioning errors and handling delays. Automatic loading, barcode recognition, air-flotation tables and quick clamping support consistent production for wardrobes, cabinets and customized furniture.
A high-end automated dual-channel 6-sided drilling line with 6 coordinated drilling heads. It supports simultaneous processing of multiple panels and various processes, realizes fully automatic loading/unloading and continuous production, and is suitable for large-scale, high-efficiency processing needs of furniture factories with both precision and productivity guaranteed.
Key Advantages:
1. Shorter Job Changeovers: Move between different panel programs with less manual measuring and setup, making mixed cabinet, wardrobe and custom orders easier to schedule.
2. Lower Rework Risk: Coordinated drilling data across six faces helps reduce mismatched joints, scrap panels and assembly delays caused by repeated manual positioning.
3. Flexible Batch Production: Handle changing panel sizes, drilling patterns and short custom runs without preparing a dedicated fixture for every product.
4. Production-Line Ready: Support feed-through workflows and connection with cutting, edge banding, sorting and downstream assembly equipment for smoother material flow.
5. Reduced Operator Dependence: Digital processing reduces repetitive marking and manual drilling, allowing operators to focus on loading, quality checks and exception handling.

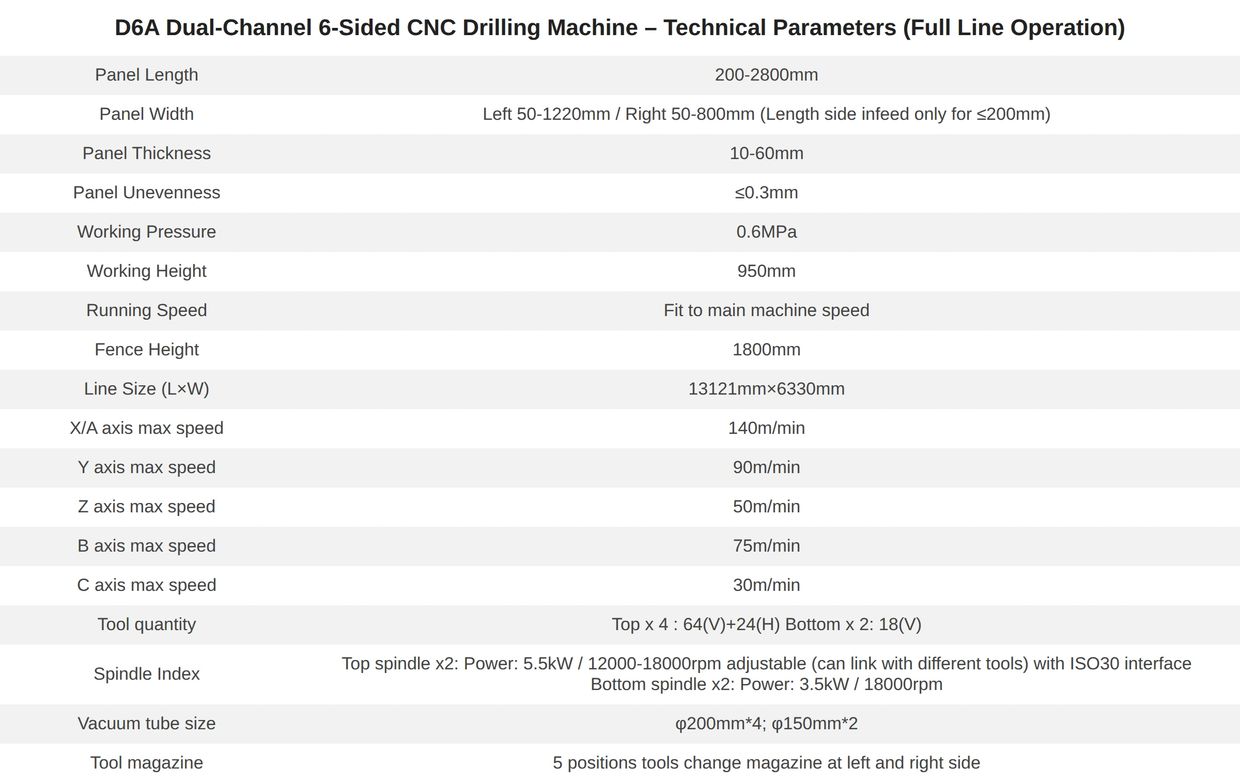

D6A Dual Channel 6-Sided Drilling Center Standard Functions
1. Heavy-Duty Machine Body:
Adopting multi-process integral processing with high rigidity, it ensures long-term stable operation and lasting machining accuracy.
2. Dual Transitional Air Flotation Worktable:
Enables flexible hole positioning and reasonable panel support for higher drilling accuracy with no bottom dust residue.
3. Quick Positioning & Clamping:
Auto side pushing for precise positioning, firm clamping and no machining deviation.
4. Self-Developed Control System:
Path optimization reduces idle travel, improves efficiency and connects with multiple software.
5. Intelligent Scanning & Abnormity Handling:
Visual operation; supports CAD/CAM, DXF/MPR/XML; path simulation, real-time production stats & accurate time prediction.
6. Multi-Process Compatibility:
Dual 5-position tool changers support grooving, milling and Lamello integrated processing.
7. Visual Intelligent Control:
Real-time monitoring, path simulation, time prediction and production statistics.
8. Upgraded Dual Gripper & Long Guide Rail:
Realizes fast processing of various panel holes.
Optional Features:
Optional Features:
1. Grooving Function (Optional):
Grooving Function (Optional): With grooving saw blade; X-range 55–880mm; saw φ120mm×6mm, max depth 20mm; left/right saws on both sides of drilling head.
Optional Features:
Optional Features:
Optional Features:
2. Two-Side Aggregate (Custom Optional):
Two-Side Aggregate (Custom Optional): Supports grooving saw, lamello, Lecco cutter for side processing; max tool length ≤ 50mm.
