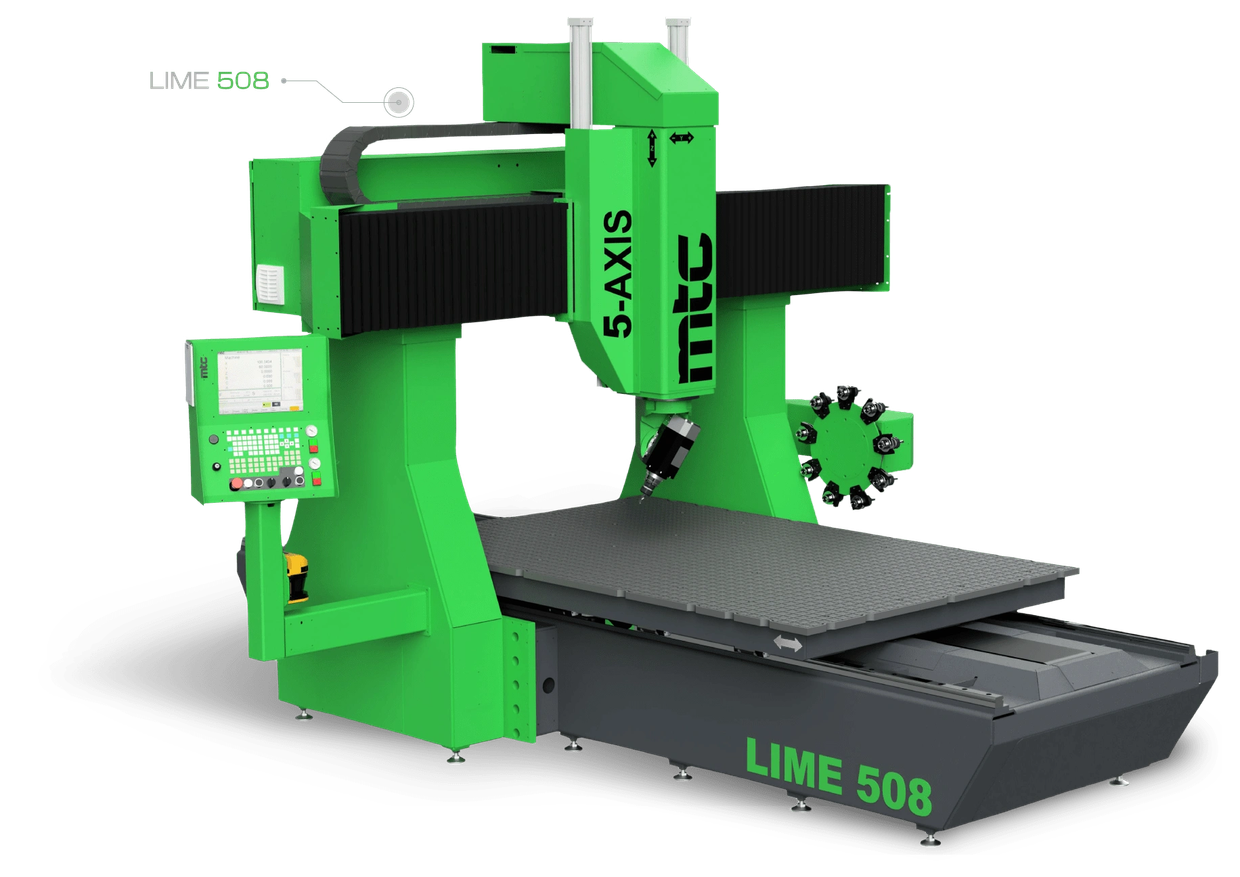

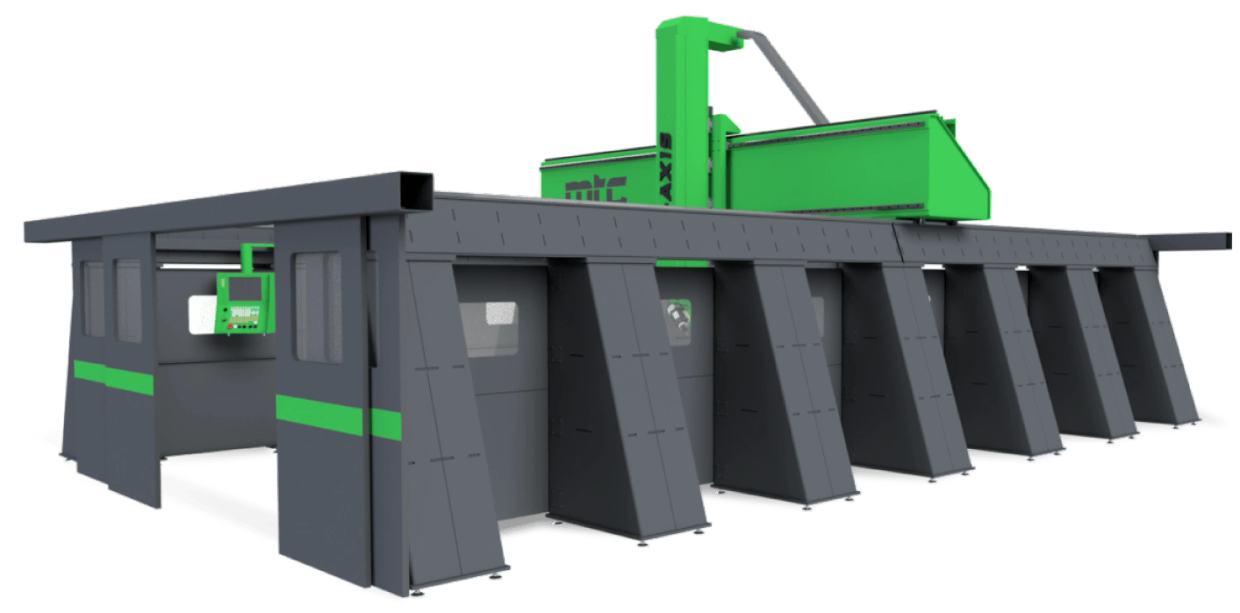

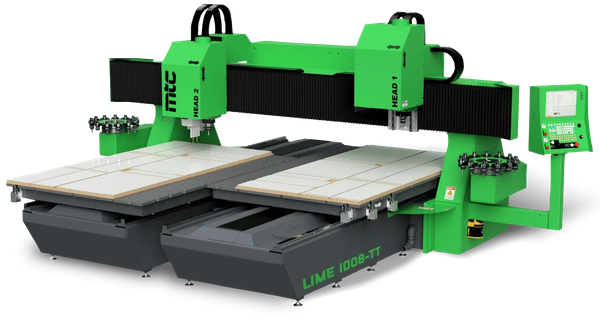

Mass Matters! The Lime Fixed Bridge Machine offers the best in machine rigidity and accuracy. Lime offers more mass in the bridge than moving-gantry machines have in total. Industry leading Advance-Vacuum-Following delivers the best vacuum holding possible by dynamically boosting vacuum pressure in the Cut-Zone. Z-axis travels up to 4’ and offerings in 3, 4, & 5 axis spindle movement make Lime the ultimate, heavy-duty CNC router. High Velocity Dust Collection

• Fixed Bridge Structure
• 12” Clearance under bridge
• 18HP, 24,000RPM, 3-Axis Spindle
• 5’x10’ Vacuum Table
• Front-to-Back Table Orientation
• Part Location Pins
• On-Board, Continuous, Long-Term
  Lubrication bearing technology
• High Velocity Dust Collection

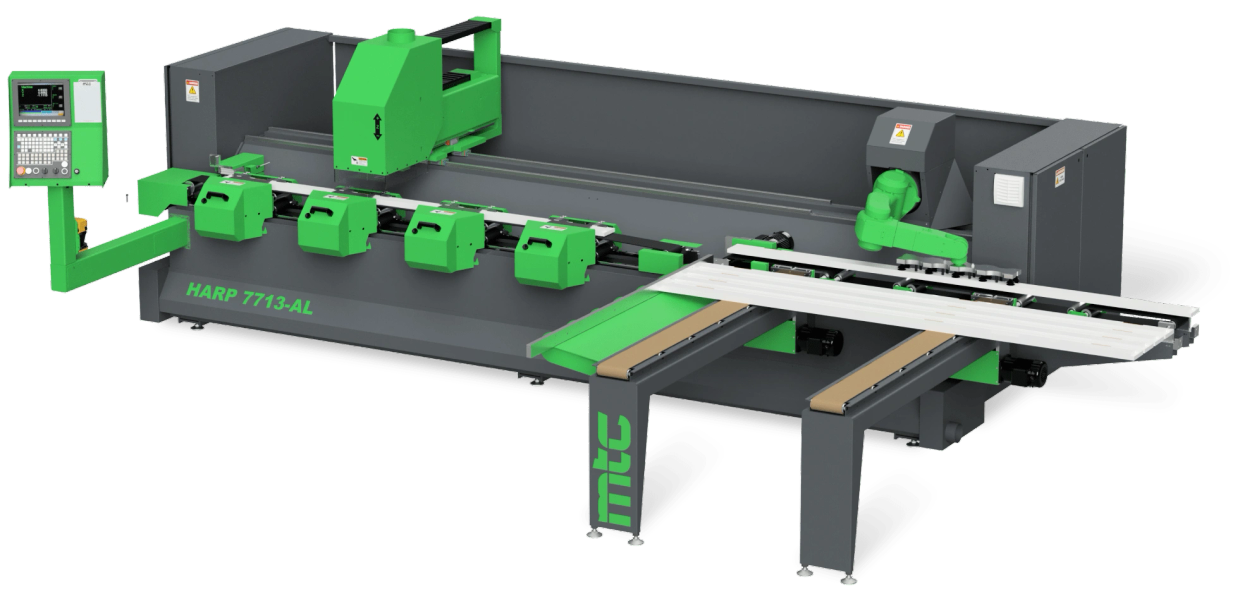

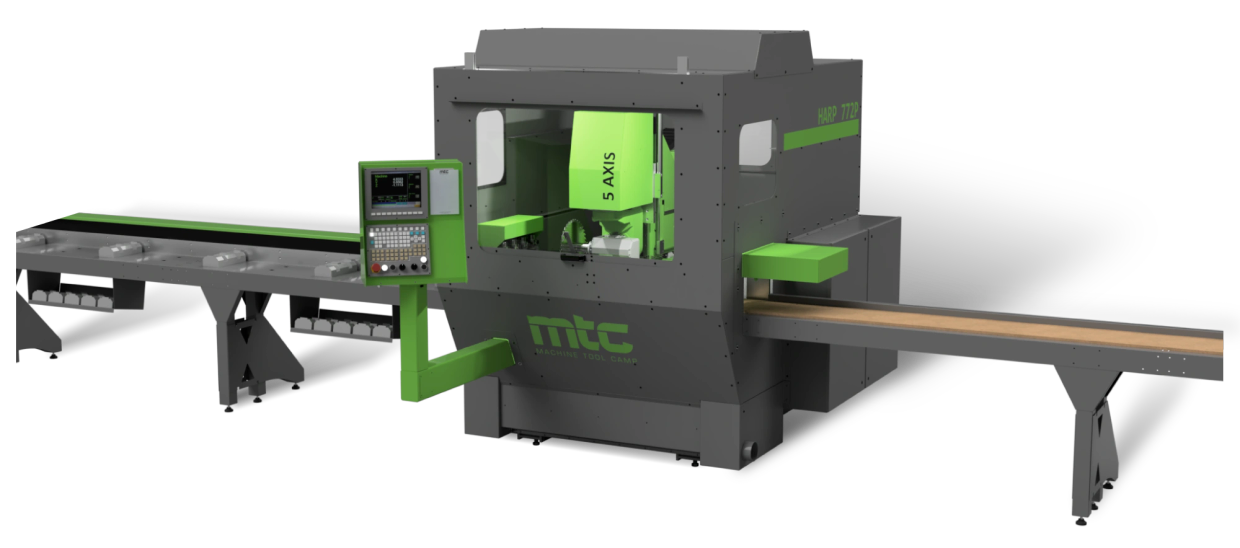

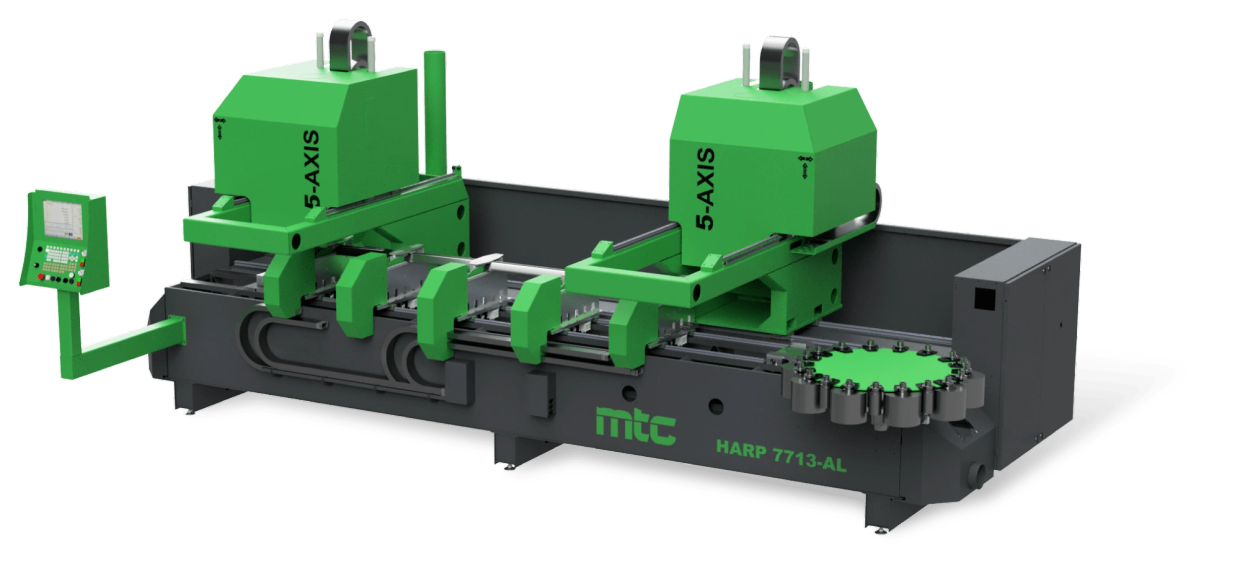

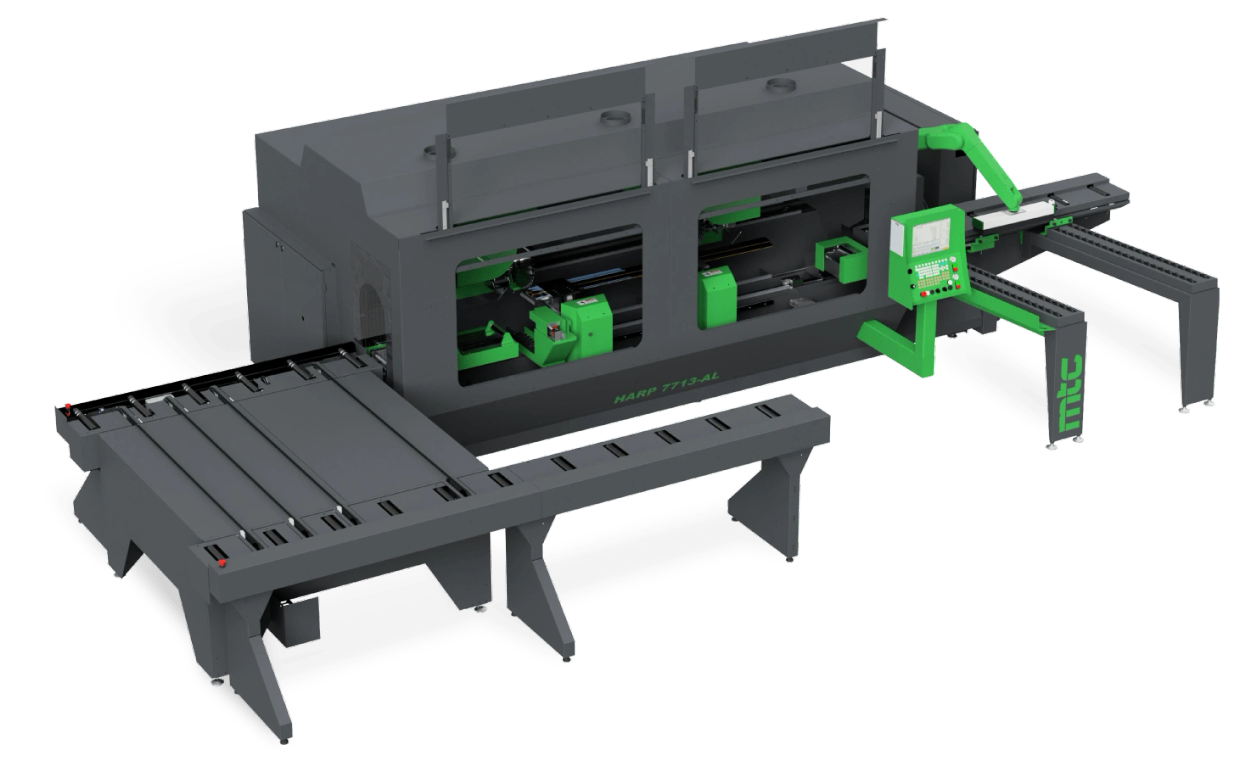

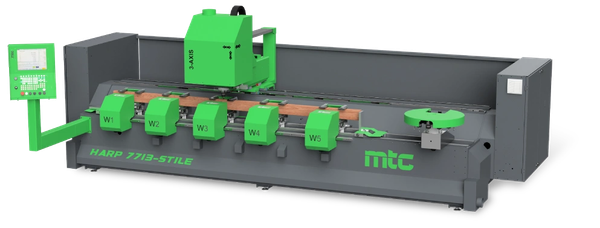

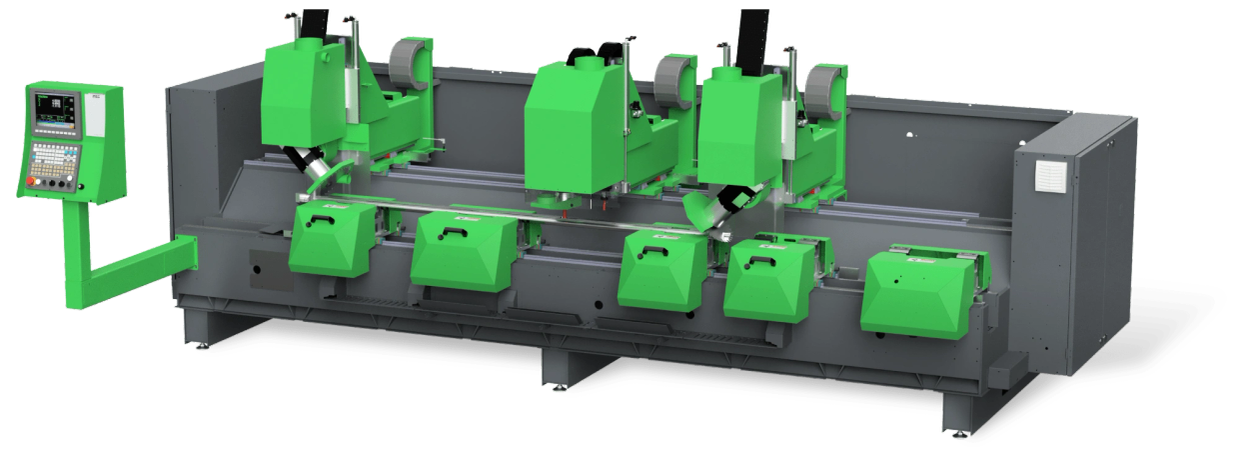

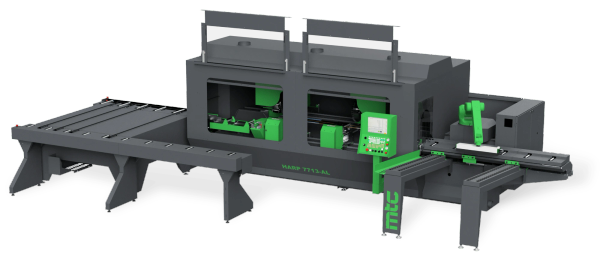

The HARP series of CNC machines are designed specifically for Long & Narrow part processing. High throughput is achieved with multiple spindles cutting simultaneously via a Multi-Thread CNC Control system. “Push-Feed” configurations as well as “Multi-Head” configurations are key to processing hard-to-hold parts from narrow raw materials including wood, composite, aluminum, plastic and other advanced materials.

• Parts up to 31’ long
• Tool changer options
• Chip Conveyance Systems
• Mechanical clamping systems
• Through-Feed loading
• Hopper-Feed loading
• Robot loading
• Multi-Thread CNC Control System
• Custom clamping fixtures
• Custom spindle configurations

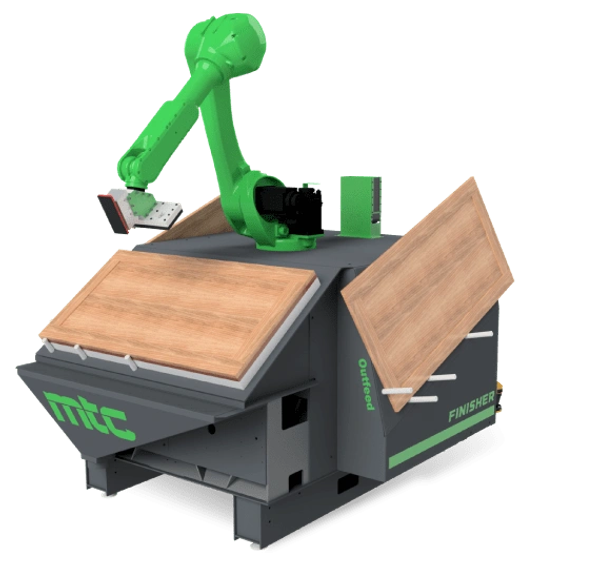

Purpose built for Cabinet Door Sanding, this robotic system includes fully automated loading and unloading. With “Door Sense” the system recognizes and measures Raised Panel Doors, Arched Panel Doors, Shaker Type Doors, MDF Doors, etc. automatically. Sanding media is automatically changed when needed.

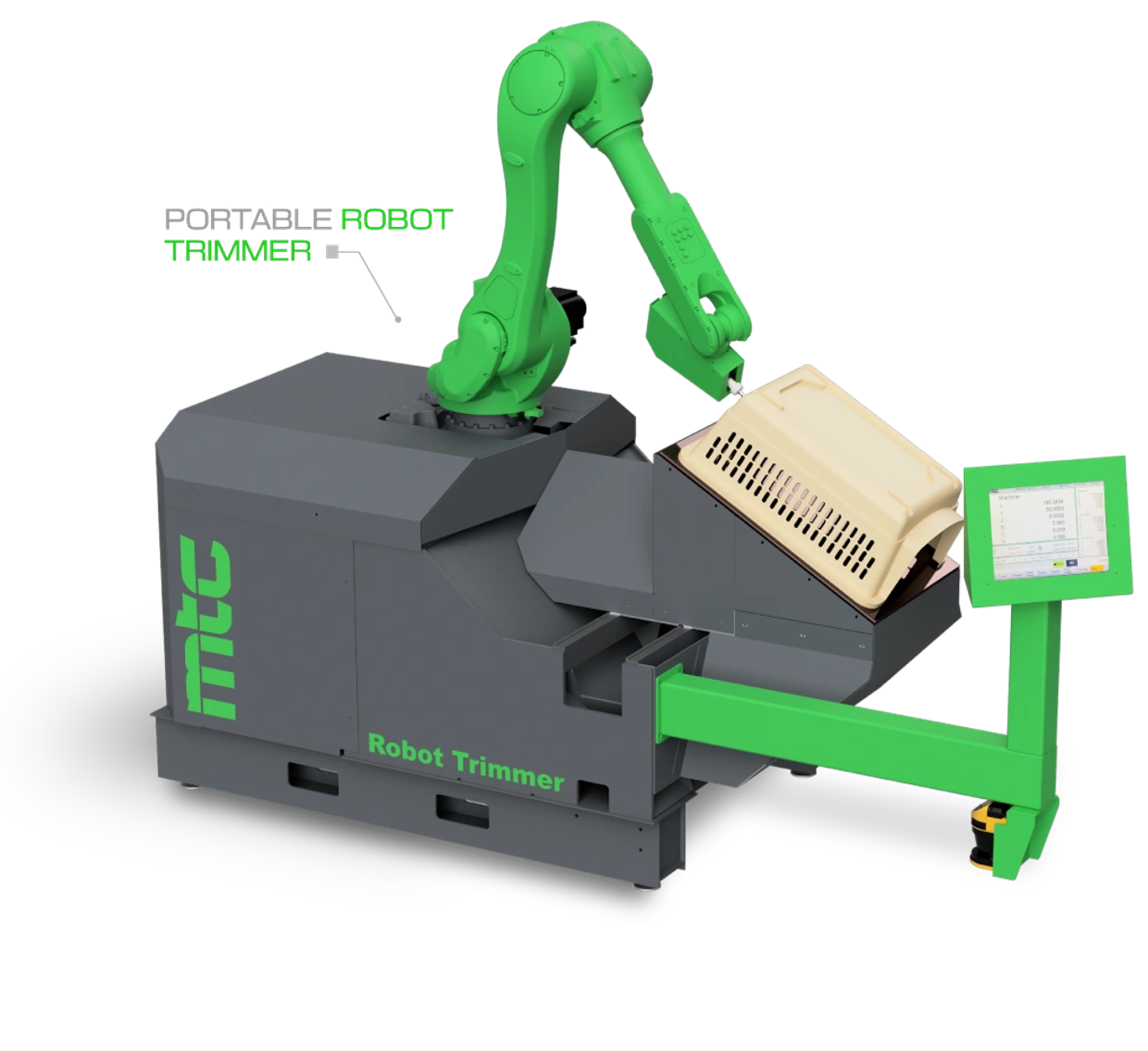

Purpose Built Robotic Systems fill labor gaps allowing your staff to focus on their true craft. Perfectly suited and easily programmed, robots are affordable, reliable, and ready to work. They’re flexible, portable, and making a mark in trimming, routing, sanding, assembly, and more. Machine Tool Camp is leading the Robot Revolution within your industry.

Assembly Robotic Systems have the ability to arrange various parts, assemble them, apply adhesive, screws, stables, nails, etc. Assembly applications include furniture, drawer boxes, case goods, weather stripping insertion, foam application, etc.

• 1 to 13HP Routing and Trimming
• Processing wood, plastic composites, soft metals, etc.
• Automatic Tool Changers
• Tooling you already know
• Programming with CAD/CAM
• Multiple size work envelopes
• Digital safety fencing
• Pendulum Processing
• 7th Axis (Robot moving along track)
• Flexible work holding

Engineered specifically for hinge and strike prep in wood, composite, and cellulose Jambs, with integrated “door stop” or applied-stop variations. Processing capabilities include hinge pockets, pre-drills, strike pockets, dead-bolt, multi-point lock features, head/sill dado, and precision cut-to-length. Single or multi-head configurations offering throughput from 300 to 4,000 parts per shift with as little as 0.2 full time labor equivalents. Load manually, semi-automatically, or direct from the pallet with factory integrated robotics.

• Single machining head with 3HP routing and 1HP drilling spindles
• Four door jamb clamping fixtures
• Standard Jamb Sizes up to 8-7/8”
• Jamb lengths up to 100” long
• Hardware face reference for accurate feature depths
• On-Board, Continuous, Long-Term Lubrication bearing technology

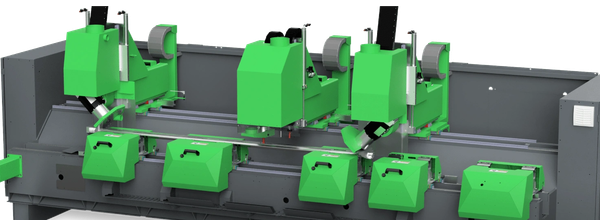

Capable of providing Programmable-Angle-Sawing on each end of the part simultaneously while, optionally, processing additional features. Manual or Automated loading is available in addition to “cut-list” programming interface, macro capability, and “order entry” connectivity.

• Single Machining Head with 7HP, saw motor
• Four standard clamping Fixtures
• Variable angle sawing
  Mechanical Profile Straightening
• On-Board, Continuous, Long-Term Lubrication bearing technology
