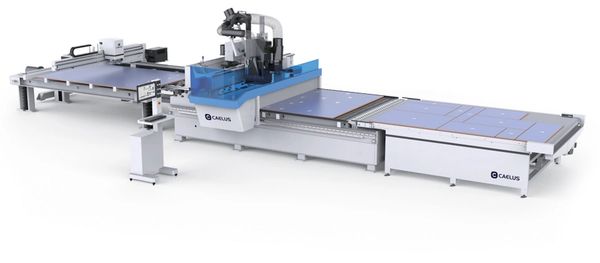

Automated CNC Nesting with Labelling Solution Line C3LA
High-efficiency intelligent line for custom furniture: nesting, grooving, drilling, labelling & outfeed in one system.
- Heavy-duty stress-relieved frame & fully sealed vacuum chamber for stable, high-precision machining.
- 13.2kW HSK-F63 spindle, high power, high accuracy, long service life.
- 16-position ATC, standard C-axis & automatic tool setting.
- 6 auto-controlled vacuum zones, dual high-flow dry vacuum pumps.
- TPA bus PC control, intuitive HMI, remote maintenance supported.
- Automatically Controlled Vacuum System.
- TPA Bus System (PC-controlled).
- Automatic loading & labelling + intelligent outfeed, labor-saving & efficient.

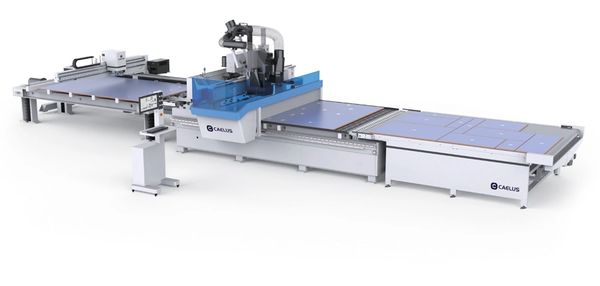

Automated CNC Nesting with Labelling Solution Line C3A
High-efficiency intelligent processing line for custom furniture: one-stop nesting, grooving, drilling, labelling and outfeed.
- High-performance 13.2 kW Milling Unit.
- Drilling Unit with 12 Vertical + 8 Horizontal Drilling Spindles plus Grooving Saw.
- 16-position Tool Changer with HSK F63 Tool Holder.
- C-axis as Standard Equipment.
- Automatic Tool Length Measurement.
- Automatically Controlled Vacuum System.
- TPA Bus System (PC-controlled).
- Intuitive Human-Machine Interface (HMI).
- Easy Integration into Existing ERP Systems / User Software.
- Remote Maintenance Available via AnyDesk or TeamViewer.
Standard Functions:
1. CNC Nesting Machine C3A
• Spindle: 13.2 kW HSK‑F63.
• Drilling unit (optional): 12V+8H+1 grooving saw.
• Tool changer: 16 tools + 1 aggregate holder.
• Vacuum zones: 6 auto controlled zones.
• Standard: movable console, light curtain, auto pusher, tool setter.
2. Automatic Labelling CTL33/21
• Auto positioning, auto height adjustment, auto labelling, error detection
• Loading capacity: 3500 kg
• Suitable panel:3100×2100×10–40 mm
• Industrial printer, stable & high-speed
3. Belt Conveyor CB35/21
• Photoelectric sensor, auto stop & go
• High-rigidity frame, smooth running
• Max. speed: 14 m/min
• Suitable panel thickness: up to 60 mm
4. Sealed Vacuum Chamber & High-Rigidity Frame
Fully sealed vacuum chamber; stress-relieved frame for stable operation. Optimized vacuum design provides strong, reliable workpiece clamping
5. Tool Changer
16-post rotary ATC, HSK-F63 tool holder is equipped, disc-type automatic tool change system that is fast and accurate.
6. Automatic Vacuum Valve
Established 6 automatic vacuum zone.
7. Motion Control
X/Y axes: high-precision helical racks for accurate, smooth motion. Z axis: ball screw drive for compact structure and high precision.
8. Automatic Pusher
Standard automatic pusher minimizes manual operation and efficiently clears worktable dust.
9. Tool Setter
Built-in tool setter ensures high-precision tool measurement.
