Edge Bander Pilot E3x Intelligent Narrow-Normal Parts
Additional Information
The E3x intelligent narrow-normal parts edge banding machine is built with a monolithic, high-rigidity precision frame, featuring steel guide rails and a high-rigidity pressure beam that guarantee precise panel transportation and consistent pressure force. It automatically calibrates the pressure beam upon startup, while a magnetic encoder ensures accurate pressure performance.
The bevel snipping unit is equipped with a saw blade with avoidance retraction function, enabling high-speed processing at 25m/min while effectively reducing the risk of workpiece collision. Tools and motors are connected via HSK interfaces, ensuring a high-gloss edge finish. A modular frequency control system enhances operational reliability, and internationally renowned pneumatic components deliver fast response and high stability. The high-strength polycarbonate viewing window ensures safety.
Optional Features:
- Right-side feed machine
- 65T milling cutter unit
- EVA gluing unit
- 3kW Laser unit
- 6kW Laser unit
- PUR glue machine CP20L
Pilot E3x Product Details:
1. Integrated High-Precision Heavy-Duty Frame
A stress-relieved welded structure with longitudinal and transverse supports, machined with high-precision gantry processing to provide reliable support for panel transportation and processing.
2. Dual Pressure Wheels + Steel Pressure Beam + Steel Guide Rail Structure
Combined with laser alignment calibration process, it delivers stable and uniform pressure force during panel processing.
3. One Coil Magazine
Equipped with servo-driven edge feeding, it supports high-volume production with user-friendly and efficient operation.
4. Pneumatic Five Pressure Rollers Device
Equipped with one large and four small pressure rollers, including independent drive motors, a pressure roller swing structure, glue scrapers, and cleaning fluid nozzles, with low impact on edges and boards.
5. Dual-color PUR Gluing Unit
Dual channels ensure even glue distribution, with monitoring, trailing edge anti-webbing, and quick adhesive switching.
6. SBP25 High-Speed Snipping Unit
Stable 25m/min high-speed bevel snipping removes excess front/rear edge banding. Features rigid bracket, dust-resistant rails, saw blade avoidance
retraction function.
7. RTP20 Rough trimming / FTP20 Fine trimming Unit
Rough trimming removes excess edge banding and trims panels; fine trimming shapes edges. Steel supports and linear bearings ensure stability all with HSK inferface.
8. CFP25 Four Motors Corner Rounding Unit
Processes vertical edges via rigid lightweight linkages. HSK interface connections minimize runout for high finish. Precision bearings enable stable 25m/ min high-speed arc processing.
9. PSP20 Profile Scraping Unit
Eliminates trimming marks for a smoother panel surface. Equipped with a steel support, linear guides, and clamp-style blades to enhance both the edge finish and overall appearance.
10. Flexible Scraper Unit
Removes upper/lower panel residues. Integrated support shoe and cutter head for non-marking scraping, adjustable shoe accommodates deformation.
11. Main Driving Motor
Chain drive powers panel transport. Premium motors with low backlash, minimal speed fluctuation, ensure high-speed running with stability.
12. Dual Reciprocating Buffing Unit
Two independent buffers handle different adhesive colors. Cotton wheels clean edges via reciprocation for cleaner, smoother, glossier finish.
Pilot E6x High Speed Intelligent Servo Edge Banding Machine
Additional Information
E6x high speed intelligent servo edge banding machine supports EVA, PUR and laser processes in a flexible edge banding equipment platform. With 32m/min feed speed, servo positioning and heavy-duty finishing units, it helps furniture factories achieve clean, consistent edges in volume production.
The heavy-duty steel structure frame is equipped with servo positioning system, dual coils servo controlled magazine, 32m/min horizontal snipping, heavy-duty four motor corner rounding, double buffing and waxing unit and other high-performance configurations, all to guarantee the high quality production of your furniture factory.
Optional Features:
- Right-side feed machine
- 65T milling cutter unit
- PUR glue machine CP20L
- 3kW Laser unit
Pilot E6x Product Details:
1. Integrated High-Precision Heavy-Duty Frame
The heavy-duty steel structure frame: steel pressure beam, steel guide rails, steel frame with fine finish processing.
2. 12+12 Coils Servo Controlled Magazine
3. 15 Servo Positioning Systems
The 15 servo positioning systems are used for feeding, pressure zone fine trimming, and profile scraping.
4. Seven Pressure Rollers With Intelligent Positioning Control
5. Automatic Pressure Beam Positioning
The machine is equipped with an automatic pressure beam positioning function, which automatically positions the pressure beam based on the workpiece thickness.
6. Electric Grease Pump
Automatically lubricates the guide rails with grease according to the equipment's operating time, enhancing equipment stability.
7. Multiple Edge-Banding Process Configurations
EVA + dual-color PUR / Laser + dual-color PUR / 2 sets of EVA / 2 sets of dual-color PUR.
8. Snipping Unit With 25 Degree Chamfer Cutting
High speed horizontal snipping unit with 25 degree chamfer cutting, Maximum speed 32m/min.
9. Heavy-Duty High Speed Four Motor Corner Rounding
Heavy-duty high speed four motor corner rounding, can switch two positions for different edge thickness.
10. Dual Tracing Wheels On Fine Trimming And Scraping With Intelligent Positioning

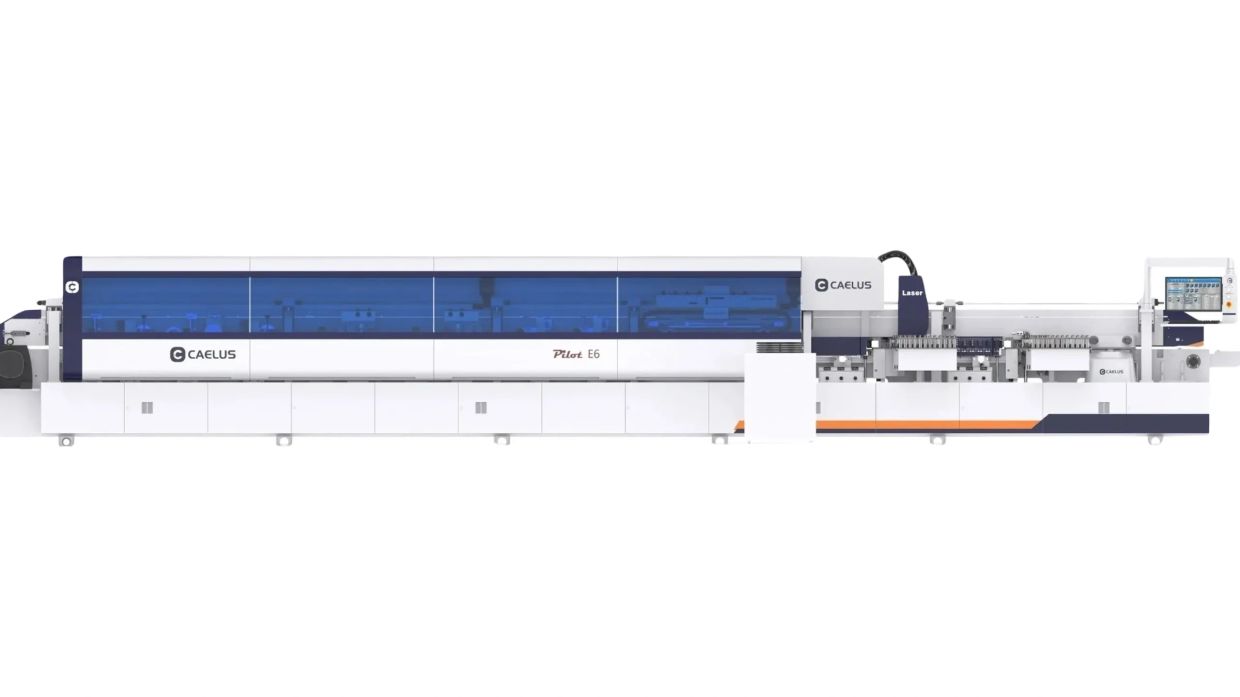

Pilot E6 High Speed Intelligent Edge Banding Machine
Additional Information
Pilot E6 is a high speed intelligent edge banding machine for furniture panel production. It supports EVA, PUR and optional laser processes, with servo positioning, a 12+12 slot servo feeder and 22-32m/min feed speed. Its heavy-duty frame, trimming, profile scraping, corner rounding, double buffing and waxing units help deliver clean, consistent edges for cabinets, wardrobes and custom panel work.
The E6 high speed intelligent edge banding machine offers you a wide range of options for different processes such as EVA, PUR or laser. The heavy-duty steel structure frame is equipped with servo positioning system, dual 12-slots servo magazine, 32m/min horizontal end-cutting, heavy-duty four motor corner rounding, double buffing and waxing unit and other high-performance configurations, all to guarantee the high quality production of your furniture factory.
Key Features:
- Reliable electrical components for stable operation
- Angled end cutting to reduce board knocking
- Crawler pressing for stable panel feeding
- Double buffer wheels for smoother finishing
- Auto wax supply to reduce edge whitening
Pilot E6 Product Details:
1. Integrated High-Precision Heavy-Duty Frame
The heavy-duty steel structure frame: steel pressure beam, steel guide rails, steel frame with fine finish processing.
2. 12+12 Slots Servo Edge Feeder /EVA (laser as option) + Dual-Color PUR
3. High Speed Horizontal End-Cutting With Degree Tilting, Max Speed 32m/min
4. Servo Positioning System Applied On Finishing Trimming And Profile Scraping
5. Heavy-Duty High Speed Four Motor Corner Rounding, Can Switch Two Positions For Different Edge Thickness
Aurora E8x High Speed Intelligent Servo Edge Banding Machine
Additional Information
Built for premium furniture production, the Aurora E8x high speed intelligent edge banding machine combines full servo positioning with a rigid steel frame for stable output. Supporting EVA, PUR and laser edge banding, it runs up to 42 m/min with dual servo edge magazines, linear-motor snipping, corner rounding, fine trimming and profile scraping for clean, durable panel edges with less setup time.
Featuring a heavy-duty steel structure integrated with a full servo positioning system, it is equipped with dual 12-coils servo edge magazine, 42m/min high-speed horizontal snipping unit, dual linear motor driven corner rounding unit, and dual tracing wheels on fine trimming unit and profile scraping unit with servo positioning. Combining millimeter-level precision with excellent efficiency, it establishes new benchmarks in premium edge banding.
Optional Features
- Servo grooving unit
- Multi profile package
- 3kW Laser unit
- 6kW Laser unit
- 65T milling cutter unit
- Right side feed machine
Aurora E8x Product Details:
1. Integrated heavy-duty steel frame construction: steel pressure beam, steel chain track, steel frame with fine finish processing.
2. Rolling block link chain, featuring high speed and stability.
3. Adopting high-strength pc panel and enhancing in feed protection, ensuring safety.
4. 42m/min high-speed linear motor driven horizontal snipping unit.
5. Flexibility in gluing: EVA+ dual-color PUR / Laser +dual-color PUR / 2 sets of EVA / 2 sets of dual-color PUR.
6. Dual tracing wheels on fine trimming unit and profile scraping unit with servo positioning.
Aurora E8 High Speed Intelligent Edge Banding Machine
Additional Information
Aurora E8 is a high-speed automatic edge banding machine for wood panel lines. Supporting EVA, PUR and optional laser edging, it combines servo positioning, a 12+12 slot feeder and up to 42m/min feed speed. Its rigid steel frame, maglev end cutting, linear-motor corner rounding, intelligent trimming and scraping help cabinet, wardrobe and custom panel makers achieve clean, durable edges fast.
The E8 high speed intelligent edge banding machine not only meets your needs for high-quality edge banding processes such as EVA, PUR, or laser, but also makes your production more flexible, efficient and intelligent.
The integrated one heavy-duty steel structure frame is equipped with a full servo positioning system, dual 12 coils servo controlled magazine, 42m/min high speed servo horizontal snipping, corner round unit with linear motor, dual tracing wheel edge trimming and scraping with intelligent positioning and other high-performance configurations, bringing you into perfect efficiency and high-quality edge banding process.
Key Features:
- EVA, PUR and optional laser edging for flexible production
- 12+12 slot servo feeder for quick edge band switching
- Heavy-duty steel frame for stable high-speed operation
- Up to 42m/min feed speed for efficient panel processing
- Maglev horizontal end cutting to reduce board knocking
- Linear-motor corner rounding for smooth finished corners
- Intelligent trimming and scraping with less manual adjustment
- Suitable for cabinets, wardrobes, office furniture and custom panels
Aurora E8 Product Details:
1. Integrated one heavy-duty steel structure frame: steel pressure beam, steel guide rails, steel frame.
2. 12+12 slots servo edge feeder /EVA (laser as option)+ Dual-color PUR.
3. High speed horizontal meglev end-cutting.
4. Dual tracing wheels on fine trimming and scraping with intelligent positioning.
