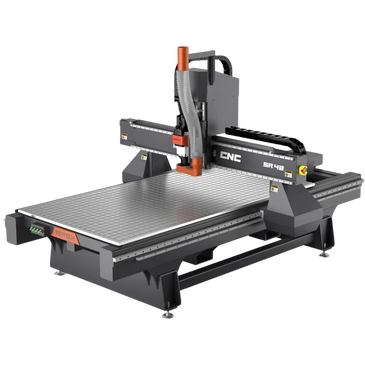

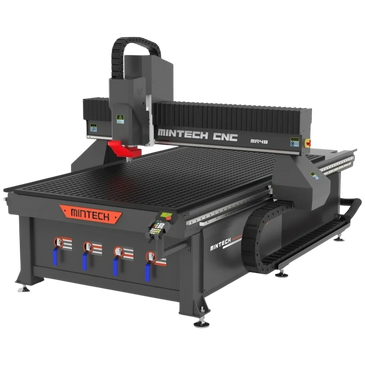

Heavy-duty CNC router. The SR Series CNC Router, short for "Super Router", is a heavy-duty CNC machine engineered for machining extra-large, extra-thick, and extra-heavy materials.

POWER SUPPLY
220V Three Phase

CONTROL SYSTEM
Weihong / Syntec / Siemens

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Air Cooling

SPINDLE POWER
9000 Watt (12 HP)

SPINDLE RPM
24000 RPM

Control System

• Industrial-grade CNC system supporting file formats like DXF, AI, CDR, NC, G-code for 2D and 3D machining.
• Compatible with industrial controllers such as Weihong, Syntec, and Siemens.

CAM Software Compatibility

• Compatible with industry-standard software like VCarve, Aspire, Alphacam, Engview, MasterCAM, Enroute, Type 3 and others.

Drive System

• Motion Type: Gantry movement.
• Drive Type: Servo-driven motors.
• Transmission:
  • XY-Axis: Precision helical rack-and-pinion with linear guides.
  • Z-Axis: Ball screw with linear guides.
• Speed:
  • Max travel speed: 131 ft/min ( 40 m/min ).
• Precision:
  • Positioning accuracy: ±0.004 inches ( ±0.05 mm/300 mm ).
  • Repeatability: ±0.002 inches ( ±0.05 mm ).

Spindle

• Power: 12 HP (9 kW).
• Speed: 24,000 RPM (air-cooled).
• Options: Hiteco or HSD spindles.
• Tool Holder: ISO 30 with ER32 collets.

Tool Changing System

• 5-position linear tool rack (standard).
• 8-position rotary tool changer (optional).
• Fully customizable options available.

Power and Utility Requirements

• Main Power: 208-240V, 3-phase, 60 Hz, 30A.
• Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min).
• Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).

Cooling method

• Air Cooling

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10-40°C.
• Humidity: 40-60%.

Available Configurations

• Optional high-resolution CCD camera for precise positioning and material alignment.
• Optional automatic tapping system.
• Optional 4-axis / 5-axis multi-axis system

Advantages

• Heavy-Duty Performance:
  Designed for large-scale machining of oversized and heavy materials.
• Exceptional Precision:
  High-accuracy transmission systems ensure flawless machining of complex geometries.
• Customization Flexibility:
  Tailored to meet specific industrial requirements, with options for larger sizes and additional functions.
• Versatile Applications:
  Supports a wide range of industries and materials, from aerospace components to exhibition panels.
• Durability:
  Built to endure high loads and long-term operation, ensuring reliable performance.100% Free Dedicated Remote Technical Support for Life of the Machine

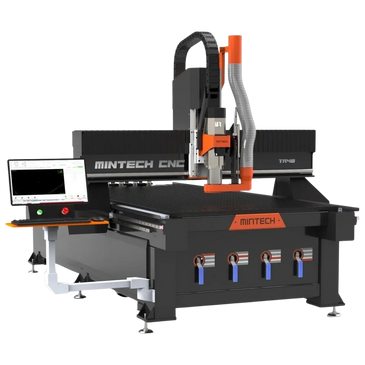

High-precision TR-M Series CNC Router for UV printing, signage, packaging, textiles, and industrial fabrication. Multi-function CNC cutting machine, all-in-one CNC cutter, precision CNC machining across metals, plastics, rubber, and composite materials. Available across the USA including California.

POWER SUPPLY
220V Single Phase

CONTROL SYSTEM
MDRCNCRouter VC204-C

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Water Cooling

SPINDLE POWER
4000 Watt

SPINDLE RPM
40000 RPM

 Work Area and Capacity

• Z-Axis Travel: 4 inches (110 mm).
• Material Thickness: Up to 3.5 inches (90 mm).
• Maximum Cutting Thickness: Up to 1 3/4 inches (45 mm) with appropriate tooling.

Machine Structure

Frame: Square steel pipe welded structure, stress-relieved through high-temperature aging.

Working Table

Phenolic composite grid vacuum table with aluminum T-slots.

Control System

• CNC System: MDRCNCRouter VC204-C.
• File Support: DXF, AI, CDR, NC, G-code, with automatic G-code generation.
• Interface: Integrated industrial control computer with handheld controller.
• Communication Protocols: MODBUS/TCP, OPC UA, MT CONNECT.

CAM Software Compatibility

• Compatible with industry-standard software such as VCarve, Aspire, AlphaCam, Engview, MasterCAM, Enroute, Type 3 and others

Motion and Drive

• Movement Type: Gantry movement.
• Drive System: Servo-driven motors.
• Transmission:
  • XY-Axis: Helical rack-and-pinion with linear guides.
  • Z-Axis: Ball screw with linear guides.
• Speed: Max travel speed of 197 ft/min ( 60 m/min ).
• Precision: ±0.004 inches ( ±0.1 mm ).
• Repeatability: ±0.002 inches ( ±0.05 mm ).

Spindle

• Power: 5.3 HP ( 4 kW ).
• Speed: Up to 40,000 RPM ( Water-cooled ).
• Tool Holder: ISO 20, ER20 collet.
• Cutting Tool: Milling Cutter Spindle.

Cooling method

• Water Cooling

Cutting Heads ( Optional Modules )

• Electric Vibrating Knife: For cutting flexible materials.
• Active Wheel Knife: For contour cutting.
• Pointed Knife: For fine details.
• Oblique Knife (V Cut): For V-shaped cuts.
• Spring Knife (Kiss Cut): For light, shallow cuts.
• Creasing Knife: For scoring and folding lines.
• Pneumatic Vibrating Knife: For precise cutting of dense materials.

Power and Utility Requirements

• Main Power: 208-240V, single-phase, 60 Hz, 30A.
• Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min).
• Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10-40°C.
• Humidity: 40-60%.

Available Configurations

• Optional high-resolution CCD camera for precise positioning and material alignment.

Advantages

• Exceptional Performance: High-speed spindle and cutting precision meet rigorous quality standards.
• Versatility: Handles a wide variety of materials with multiple cutting tools and modules.
• Automation: CCD recognition system ensures accurate alignment and consistent results.
• Ease of Use: Intuitive control system simplifies even complex tasks.

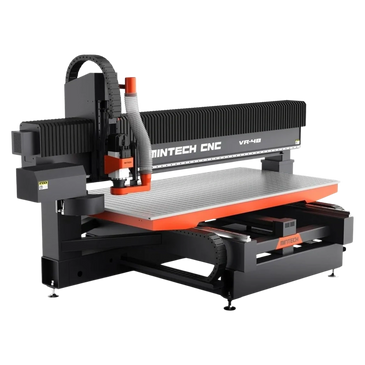

High-precision CNC router with ball screw transmission and moving table design. The VR Series CNC Router is a high-performance machine specifically designed for precision machining.

POWER SUPPLY
220V Three Phase

CONTROL SYSTEM
Weihong / Syntec / Siemens

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Water Cooling / Air Cooling

SPINDLE POWER
4kW / 9kW

SPINDLE RPM
40000 RPM / 24000 RPM

 Control System

• CNC System: Supports DXF, AI, CDR, NC, G-code formats for 2D and 3D machining.
• Compatible Systems: Weihong, Syntec, Siemens industrial-grade CNC systems.
• Interface: LCD with industrial control HMI and handheld controller.

CAM Software Compatibility

• Compatible with industry-standard software like VCarve, Aspire, Alphacam, Engview, MasterCAM, Enroute, Type 3 and others

Drive System

• Motion Type: Moving table design.
• Drive Type: Servo-driven motors.
• Transmission:
  • Ball screw with linear guides on XYZ axes.
• Speed:
  • Max travel speed: 92 ft/min (28 m/min).
• Precision:
  • Positioning accuracy: ±0.004 inches (±0.05 mm).
  • Repeatability: ±0.002 inches (±0.05 mm).

Spindle

• Power: 12 HP (9 kW).
• Speed: 24,000 RPM (air-cooled).
• Options: Hiteco or HSD spindles.
• Tool Holder: ISO 30 with ER32 collets.

Power Requirements

• Main Power:
  • VR22: 208 - 240V, 3-phase, 60 Hz, 30A.
  • VR44 / VR48: 208 - 240V, 3-phase, 60 Hz, 63A.
• Compressed Air: 0.6 - 0.8 MPa (87 - 116 psi), ≥ 3 - 5 CFM ( 85 - 140 L/min ).
• Vacuum Requirements: 117.7 - 176.6 CFM ( 200 - 300 m³/h ), vacuum pressure ≥ 85 mbar ( 8500 Pa ).

Misting / Lubricating System

• Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.

Environmental Requirements

• Temperature: 10 - 40°C.
• Humidity: 40 - 60%.

Available Configurations

• Optional high-resolution CCD camera for precise positioning and material alignment.
• Optional automatic tapping system.
• Optional 4-axis / 5-axis multi-axis system

Advantages

• Unmatched Precision: Ball screw transmission ensures accuracy for even the most demanding applications.
• Efficient Operation: Moving table design simplifies material handling and boosts productivity.
• Advanced Tooling: High-speed rotary tool changer supports complex multi-step machining with minimal downtime.
• Robust Construction: Durable frame ensures long-term reliability and consistent performance.
• Versatility: Handles a wide range of materials and applications, from industrial parts to decorative elements.
